Stage Series Rock Lights are the perfect solution to add useful light to your vehicle with their compact size and numerous mounting solutions. The following installation guide will provide you with basic instructions on how to mount and wire the Stage Series Rock Light Kit. This product should not be used on a 24V system. Disconnect the negative battery terminal before starting your installation.
Table of Contents
Installation Tools
Mounting Video
If you purchased a mounting adapter, check out the video below. Keep reading for standard mounting and wiring instructions!
Mounting Instructions
Step 1 - Identify Mounting Location
Identify the location you would like to mount your Stage Series Rock Lights.
Step 2 - Prepare Rock Light for Mounting
Remove the outer lens from your rock light, then remove the center rubber dust seal.
Step 3 - Drill Mounting Hole
To mount the rock light using the center hole option, drill a hole using a 7/32" or 15/64" bit in your desired location.
Step 4 - Drill Wire Hole
If you would like to hide the wiring, line up the light over the hole you just drilled and drill an additional 3/8" hole in the appropriate location to run the wire through your mounting surface. Otherwise, pull the wiring to the side.
Step 5 - Mount Rock Light
Use the included nut, bolt, and washers to mount the light as shown in the diagram below.
Step 6 - Mount with Zip Ties (Optional)
You may alternatively use zip ties for mounting the rock light to any available attachment point, with integrated tabs on each side of the light.
Step 7 - Reassemble Rock Light
Reinstall the rubber dust seal and clip the lens into position.
Wiring Instructions
Step 8 - Route Switch Wiring
Determine a suitable location to mount the switch, near the battery or main power terminal. Route the switch wiring to that location.
Step 9 - Connect to Battery
Connect the red power input wire to the positive battery/power terminal. Connect the black ground wire to the negative battery terminal or a factory grounding point.
Step 10 - Select Switch Location
Determine a suitable location to mount the switch in the cabin of the vehicle.
Route the switch wiring to that location. This may require going through the vehicle firewall. We recommend following the path of the factory wiring harness, and unplugging the switch while routing the wires.
Step 11 - Mount the Switch
Drill a 3/4" hole and mount the switch. Reconnect wires to switch.
NOTE: The gold spade on the switch should be connected to the black (ground) wire.
Step 12 - Route the Extension Wires
Identify the extension and splitter wires (included with 8-pack kits) included in your kit. Depending on the kit you ordered, you will have 3M and 5M extension wires. Route the extension wires to each LED, avoiding any moving parts or direct contact with heat sources. Following the factory wire loom is the best practice.
See the diagrams below for the most common way to wire the kit. Plug the output connector into the LED.
Rock Light Single Color Wiring Diagram - 4 Pack
Rock Light Single Color Wiring Diagram - 4 Pack + 1M Extension
Rock Light Single Color Wiring Diagram - 4 Pack + 2 Pack Add-On
Rock Light Single Color Wiring Diagram - 8 Pack

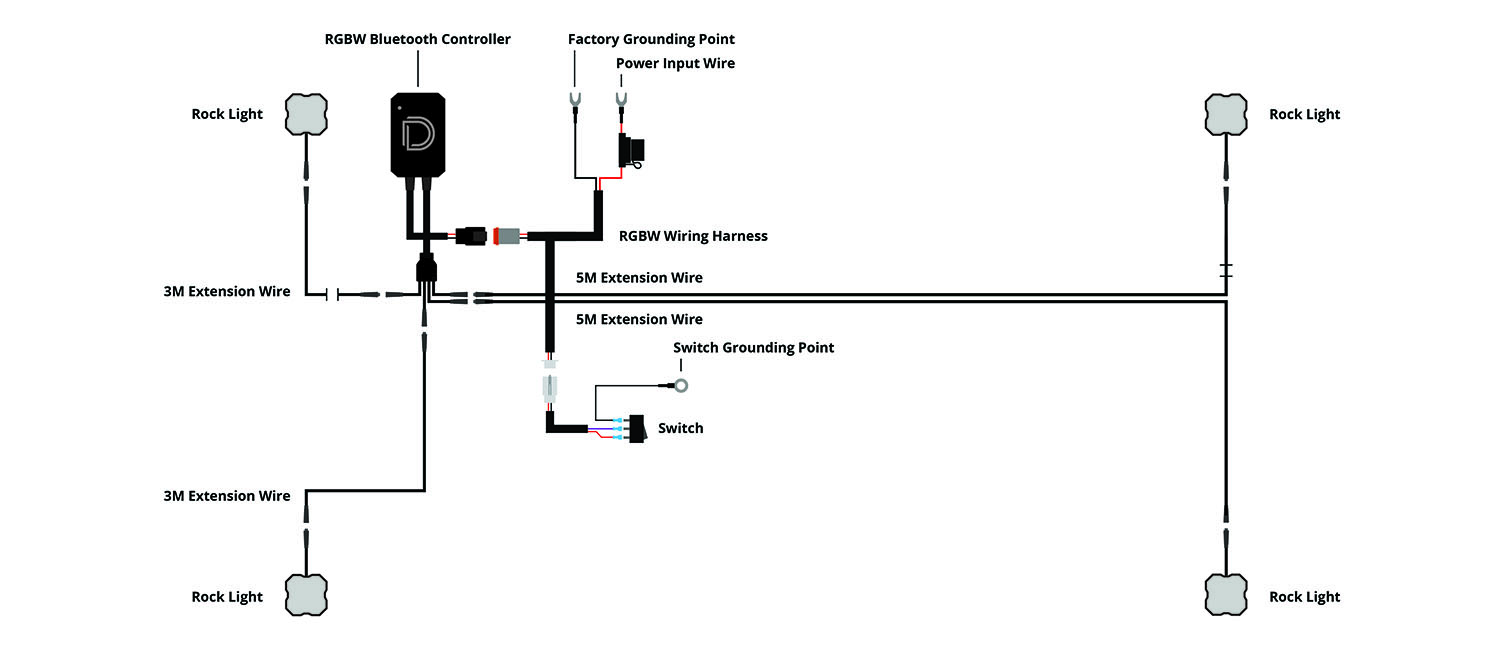

Rock Light RGBW Wiring Diagram - 4 Pack

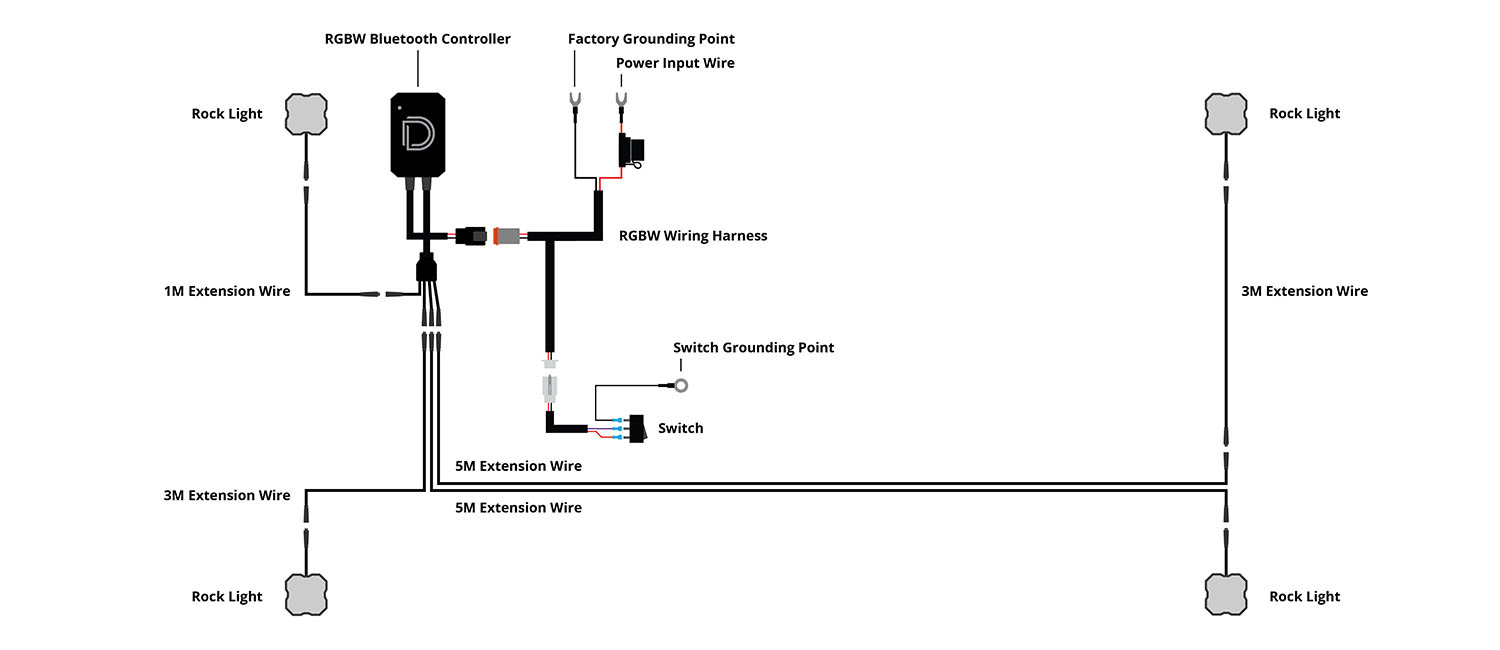

Rock Light RGBW Wiring Diagram - 4 Pack + 1M Extension

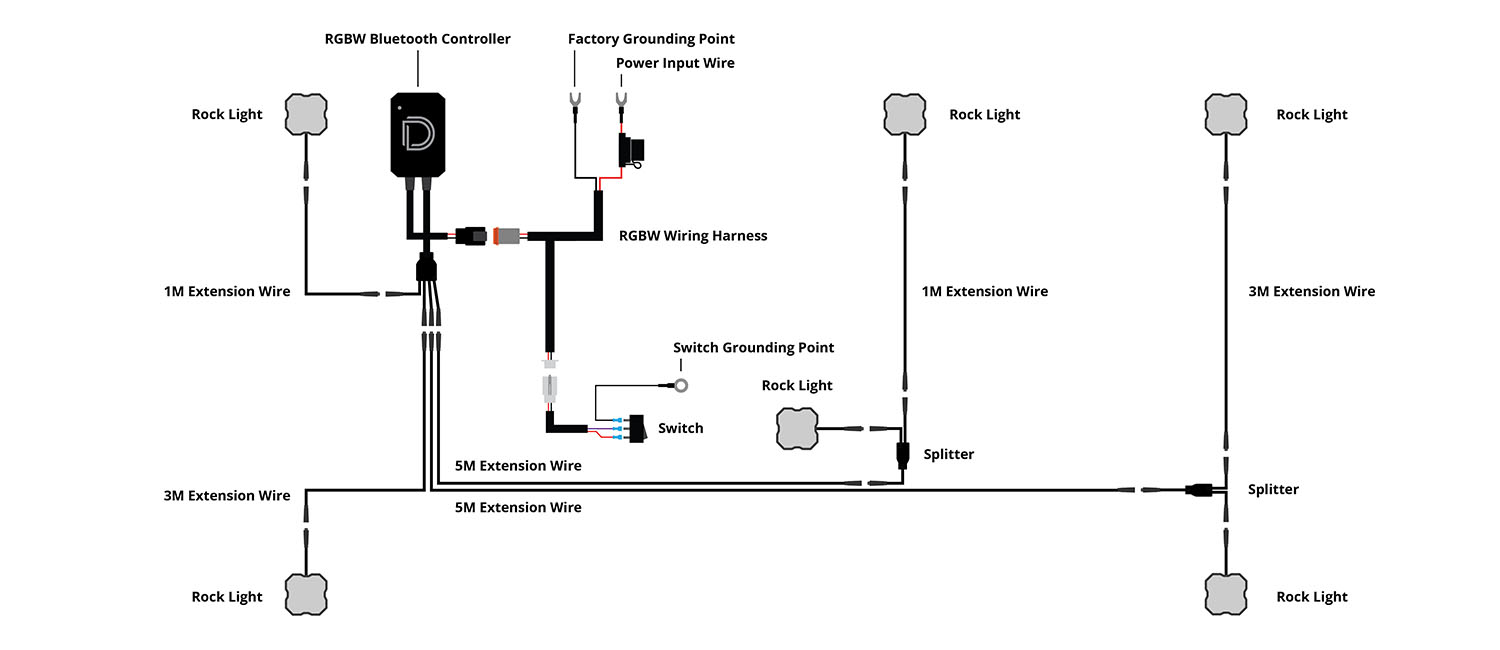

Rock Light RGBW Wiring Diagram - 4 Pack + 2 Pack Add-On

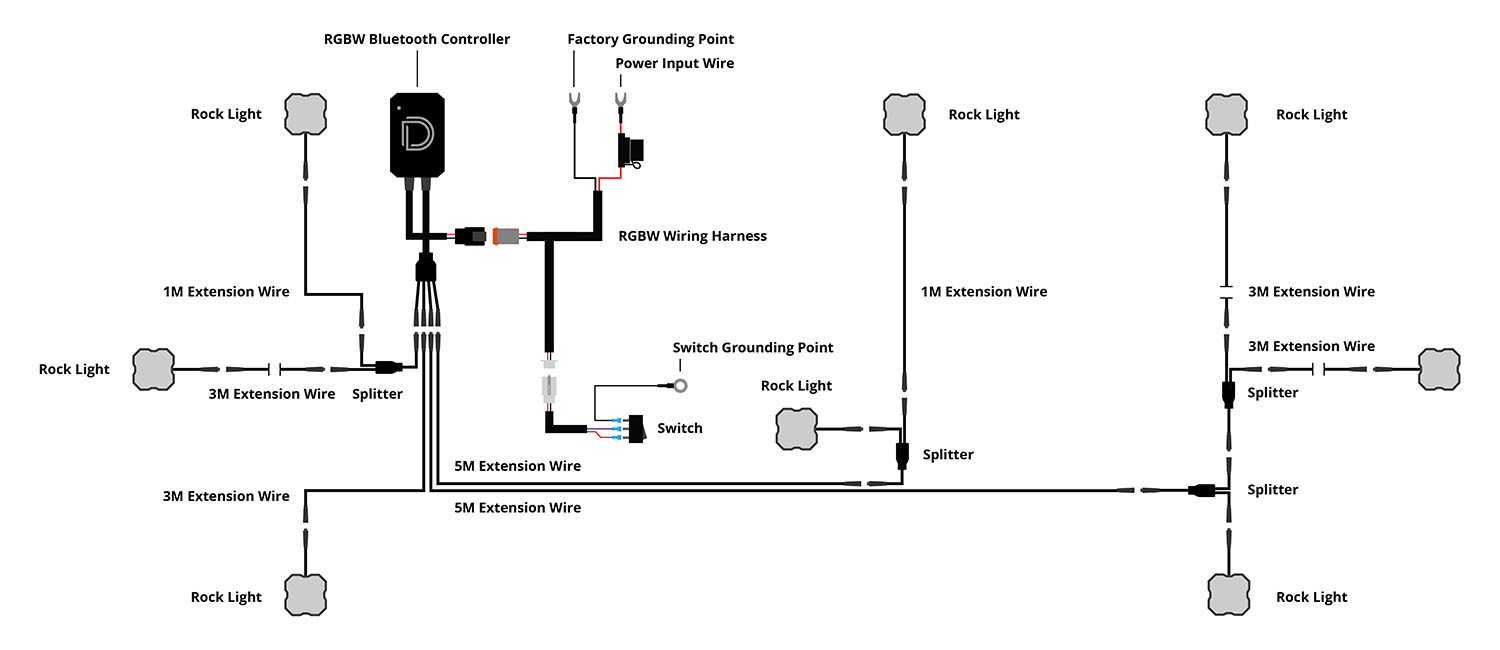

Rock Light RGBW Wiring Diagram - 8 Pack
Step 13 - Reconnect Battery
Reconnect the negative battery terminal, test thoroughly, and aim the LED appropriately based on use. Secure any excess or loose wiring. Please check your local laws and regulations regarding aiming, installation, and restrictions for on-road use, as applicable.
Questions About the Installation?
If you have any questions or issues installing the Stage Series Rock Light Kit, please contact us for further assistance.
