Stage Series 2-inch LED Pod Lights—SSC2 and the all-new C2 2.0—deliver serious output and durability in a compact package. Designed for maximum functionality, both options feature high-intensity LED chips, custom-engineered TIR (Total Internal Reflection) optics, and powder-coated aluminum construction built to handle the elements.
All SSC2 and C2 2.0 LED Pods are available in cool white or selective yellow output and include a distinctive backlight for a unique, modern look. With their compact size, versatile beam patterns, and easy installation, they’re perfect for fog lights, ditch lights, camp lighting, and more—anywhere you need reliable performance.
The following installation guide provides general instructions for mounting either the SSC2 or the updated C2 2.0 on your vehicle. Keep reading for details.
Table of Contents
Wiring Instructions
Stage Series SSC2 and C2 2.0 LED Pod Lights have an integrated Deutsch-style connector located on the back of the pod, just below the pin-fin heatsink, that securely fits the included Deutsch-style wires.
Connect the red wire to the positive supply, and the black wire to the negative or common ground. Tap the blue wire for the backlight to your desired vehicle function.
Note: This auxiliary lamp draws high current, and requires adequately-sized wiring for safe operation. If you are not using a Diode Dynamics wire harness, use wire sized 16 AWG or larger for main power and ground. Use wire sized 18 AWG or larger for the backlight (blue wire on the pigtail). Please be mindful of current ratings and wire size, especially if splitting power signals to multiple pods, or using switches. If you have any questions, please feel free to contact us for assistance.
Mounting Instructions

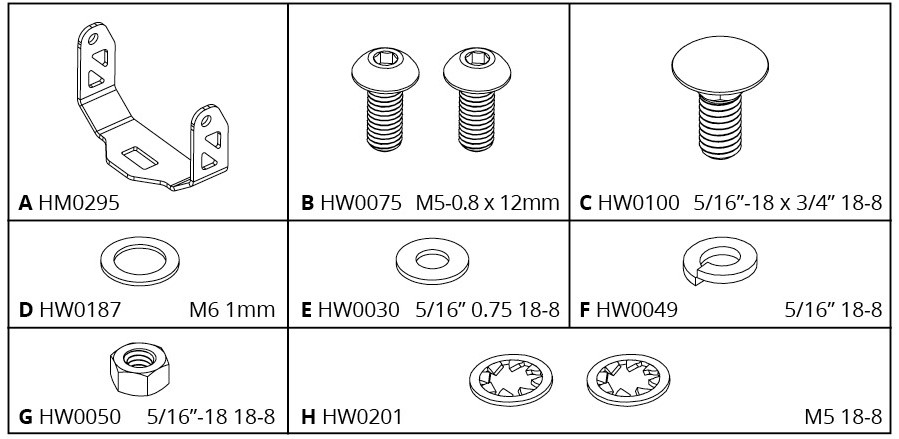

You may use the included hardware and fasteners to mount your pod if you wish.
SSC2:
C2 2.0:

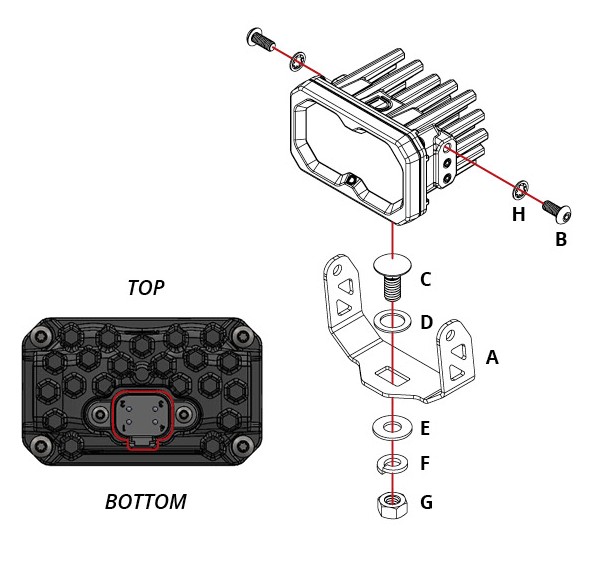

We recommend drilling a 3/8” hole to allow flush fitment of the bracket. The most common mounting style is shown below, but Stage Series SSC2 and C2 2.0 LED Pod Lights are also compatible with most standard mounting brackets on the market.
SSC2:
C2 2.0:
Dimensions
Questions About the Installation?
If you have any questions or issues installing the Stage Series SSC2 or C2 2.0 LED Pod Light, please contact us for further information.
Where Can I Buy a Stage Series SSC2 or C2 2.0 LED Pod Light?
If you're ready to upgrade your vehicle with Stage Series SSC2 or C2 2.0 LED Pod Lights, you can purchase them by clicking here, or by using our dealer locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: DD6402, DD6403, DD6405, DD6406, DD6408, DD6409, DD6411, DD6410, DD6413, DD6414, DD6415, DD6416, DD6418, DD6419, DD6420, DD6421, DD6381, DD6382, DD6384, DD6385, DD6387, DD6388, DD6389, DD6392, DD6390, DD6393, DD6394, DD6395, DD6397, DD6398, DD6399, DD6400, DD6383, DD6386, DD6391, DD6396, DD6401, DD6404, DD6407, DD6412, DD6417, DD6422
