How to Install: 2015-2021 WRX/STi C-Light LED Halos

The 2015-2021 Subaru WRX/STi C-Light LED Halo adds a much brighter DRL and amber turn signal function to your WRX C light. The following installation guide will provide you with detailed instructions on how to install LED C-Light Halos on the 2015-2021 Subaru WRX/STi. Check out our installation video, or continue reading for step-by-step instructions below!

Installation Tools

  • Phillips Head Screwdriver
  • Needle Nose Pliers

Installation Video



Mounting Instructions

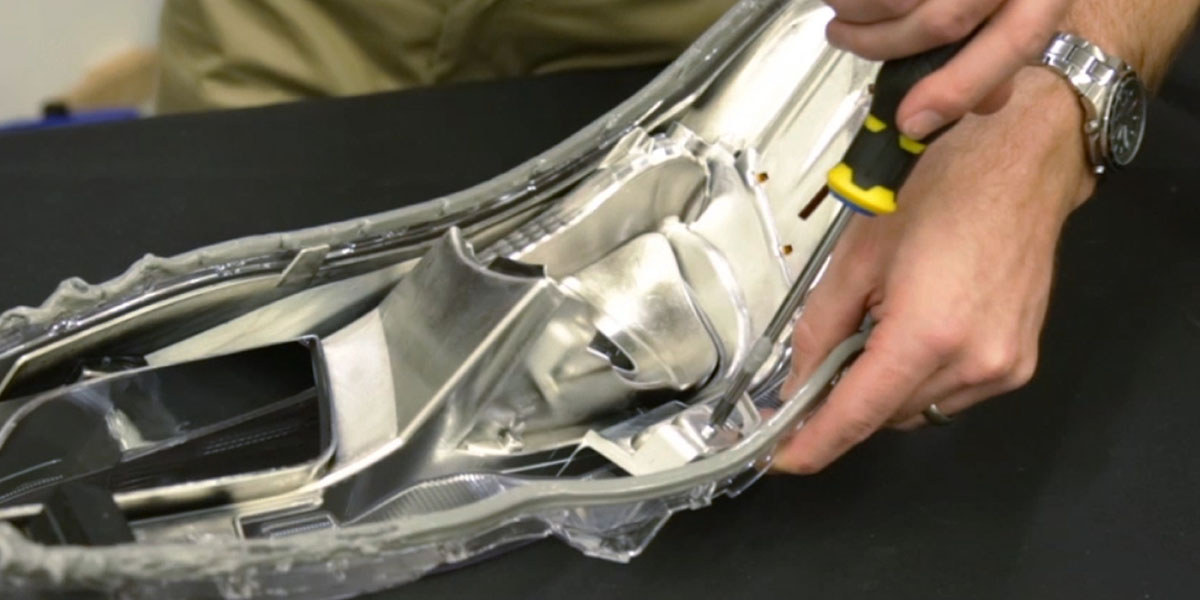

Step 1 - Disassemble Headlight

Remove the lens and set the headlamp assembly aside. Next, remove the three screws holding the bezel to the lens. Then remove the bezel from the headlight lens.

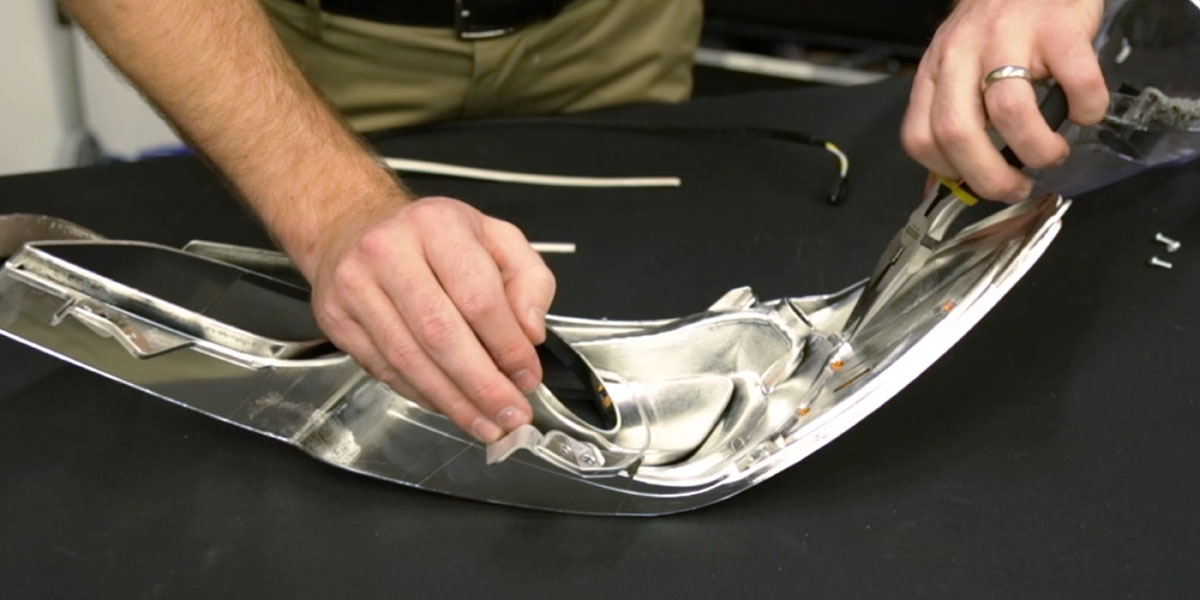

Step 2 - Unclip Reflector Lens

Bring the bezel to a soft, non-marring working surface. Then unclip the reflector lens from the bezel by squeezing the clear clips with a pair of pliers and pushing downward on them.

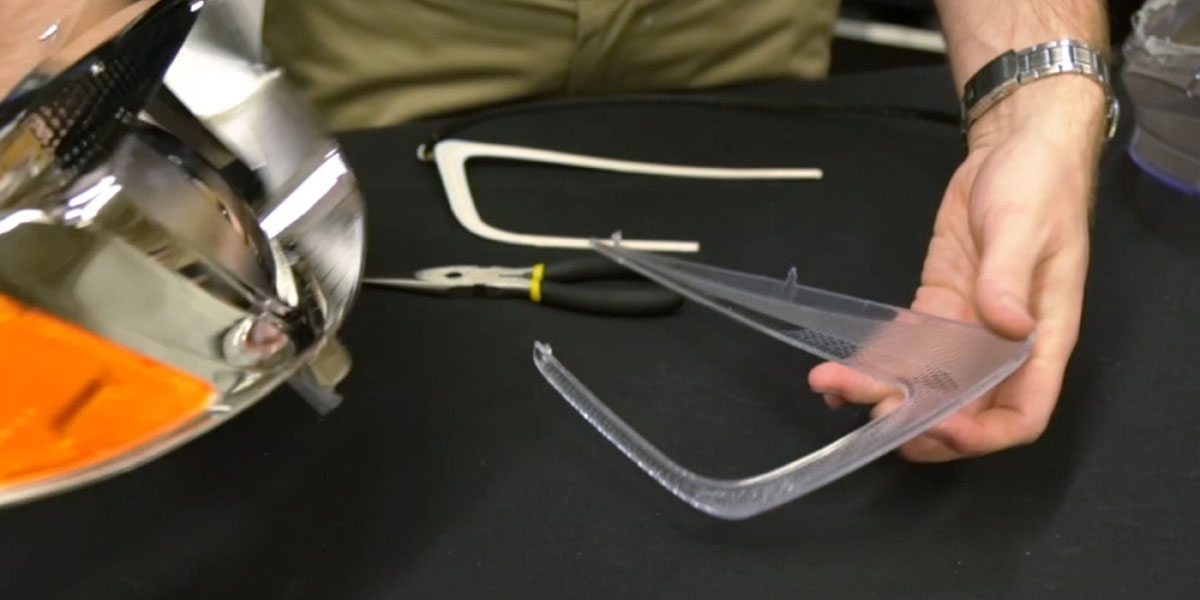

Step 3 - Remove Reflector Lens

Pull the reflector lens straight out to remove it and set it aside.

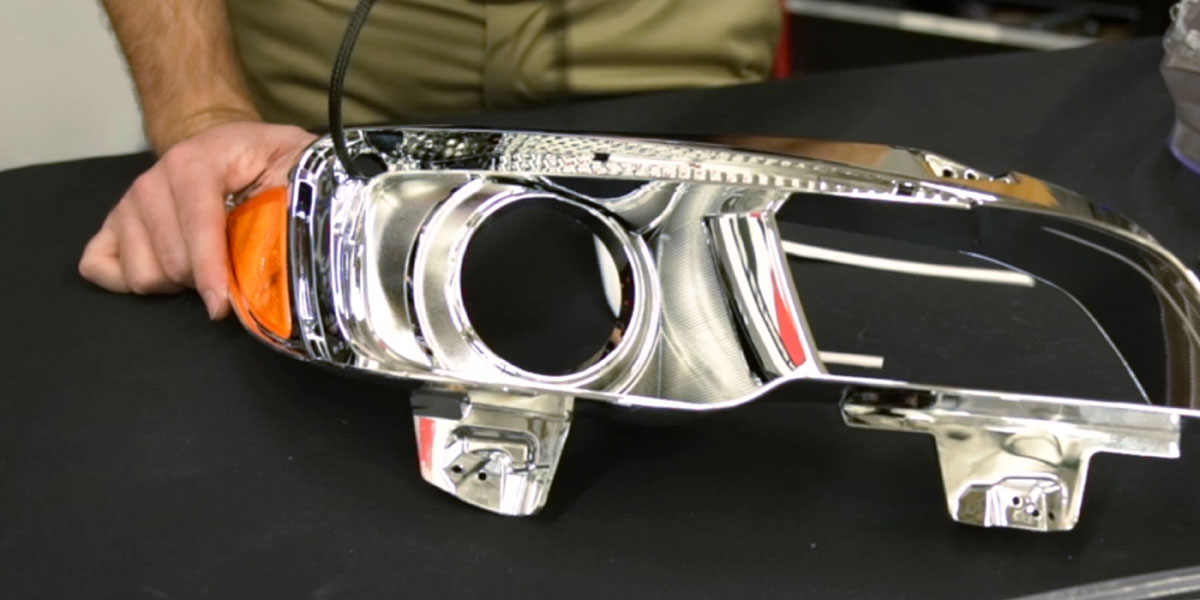

Step 4 - Install C-Light

Install your new Diode Dynamics C-Light by running the wires through the hole where the factory bulb was and setting the LED board into place.

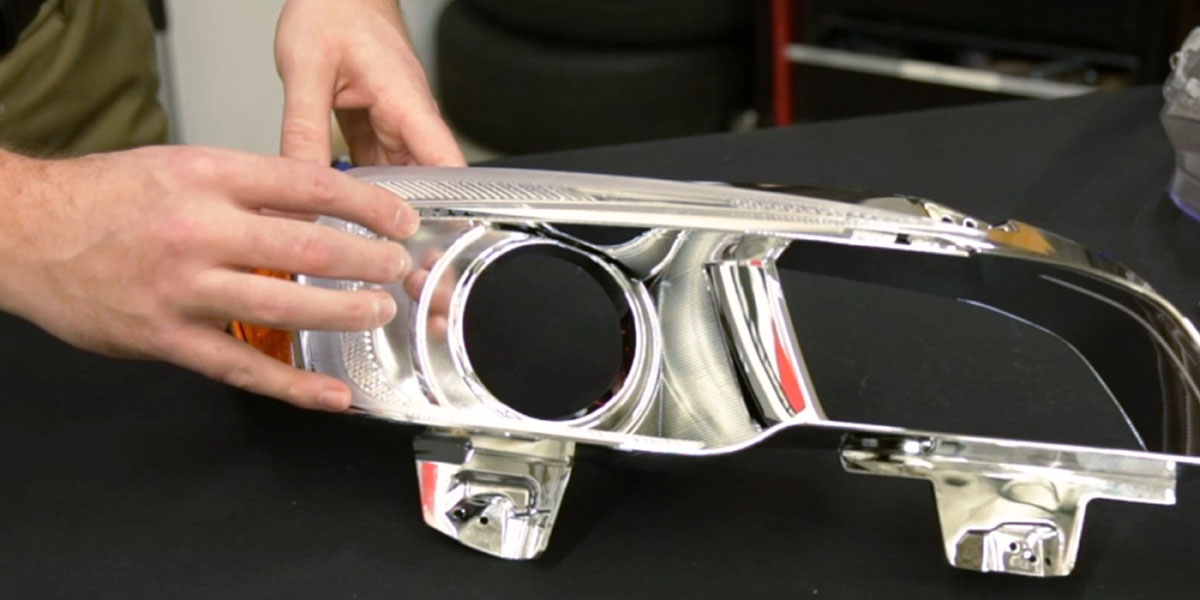

Step 5 - Reinstall Reflector Lens

Reinstall the reflector lens into the bezel by aligning the clear clips and snapping them back into their original position. Align all of the clips at once.

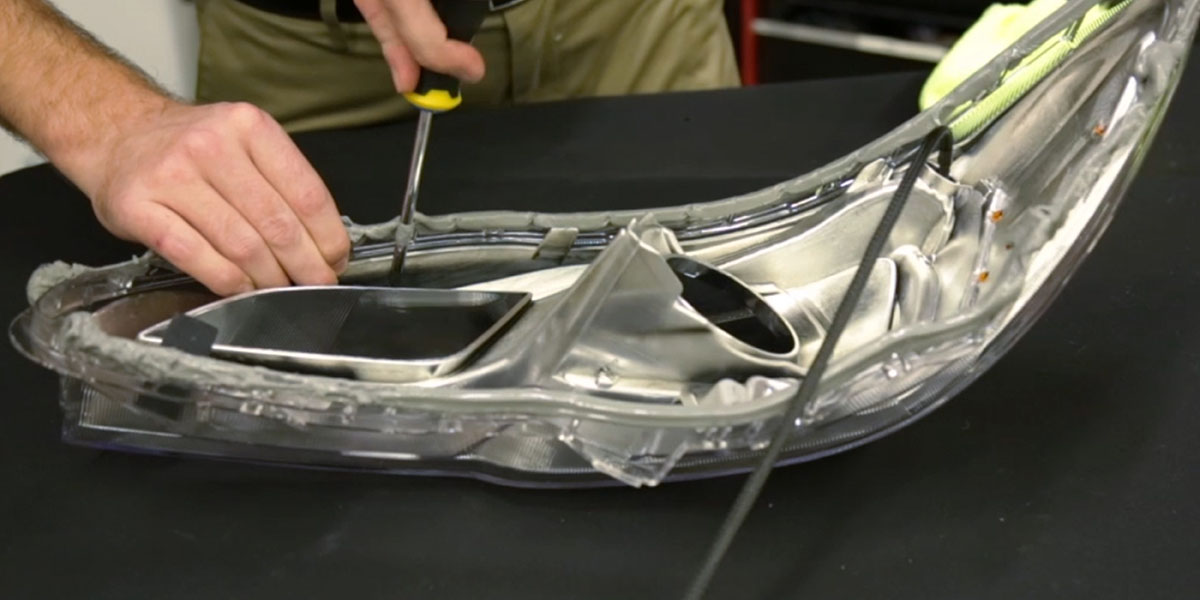

Step 6 - Reinstall Bezel

Using a microfiber cloth, remove any fingerprints that may be on the bezel then reinstall it back into the headlight lens by clipping it into place. Reinstall the original screws.

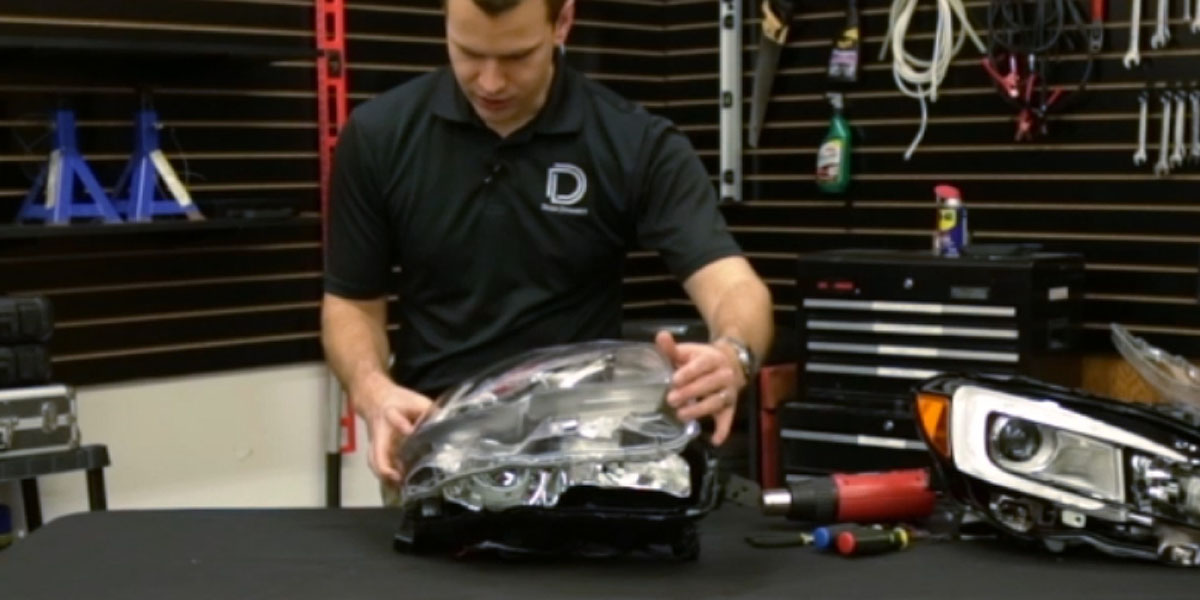

Step 7 - Reinstall Headlamp Lens

Reinstall the lens on the headlamp assembly by running the wires through the existing factory hole or grommet. Set the lens into place and apply pressure to snap the original clips back into place. Reinstall the original screws and repeat for the other headlamp.

Wiring Instructions

Step 8 - Connect LED Board

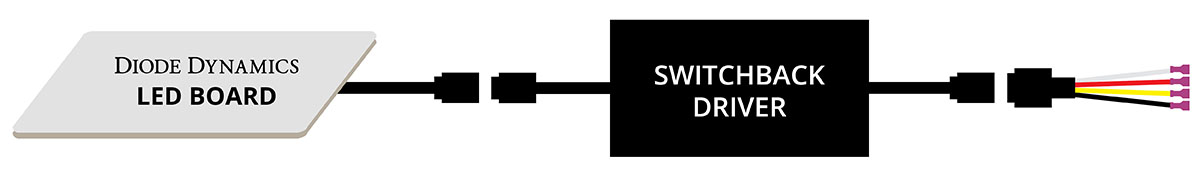

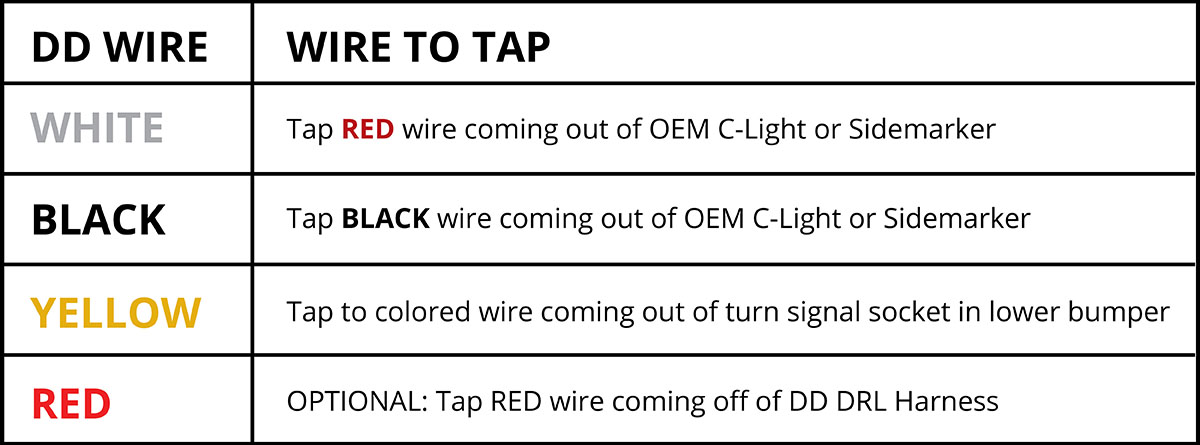

First, connect the board connector to the Switchback driver output. Connect the Switchback driver input to the pigtail. Finally, tap the bare wires to the wiring harness. See the Wiring Method Diagram below. The black wire must be grounded before any function will work.

IMPORTANT: DO NOT plug the LED panel directly into the pigtail without the driver.
The LEDs must be plugged into the driver first to control the power.

Step 9 - Mount Driver

Mount the driver and tuck all wires. The driver should be mounted outside of the headlight for serviceability, in a location away from the engine block to avoid excessive heat buildup.

Step 10 - Test and Complete Installation

Test thoroughly, reseal the headlight, and reinstall onto the vehicle.


Questions About the Installation?

If you have any questions or issues installing C-Light LED Halos in your 2015-2021 Subaru WRX/STi, please contact us for further information.

Where Can I Buy 2015-2021 Subaru WRX/STi C-Light LED Halos?

If you’re ready to upgrade your 2015-2021 Subaru WRX/STi with a C-Light LED Halo, you can purchase one by clicking here, or use our dealer locator to find a dealer near you.

Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!

This Installation Guide is for the following SKUs: DD2016, DD2300
