The Stage Series Backlit Ditch Light Kit for the 2018-2023 Subaru Crosstrek allows you to easily mount two SSC2 or SS3 Backlit LED Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling is required! This kit features a low-profile design while minimizing glare, and will not interfere with raising or lowering the hood. Check out the installation video and continue reading for step-by-step instructions below!
Table of Contents
Installation Video
Installation Tools
- Masking Tape
- Ratchet
- 12mm Socket
- 13mm Socket
- 4mm Allen Wrench
Mounting Instructions

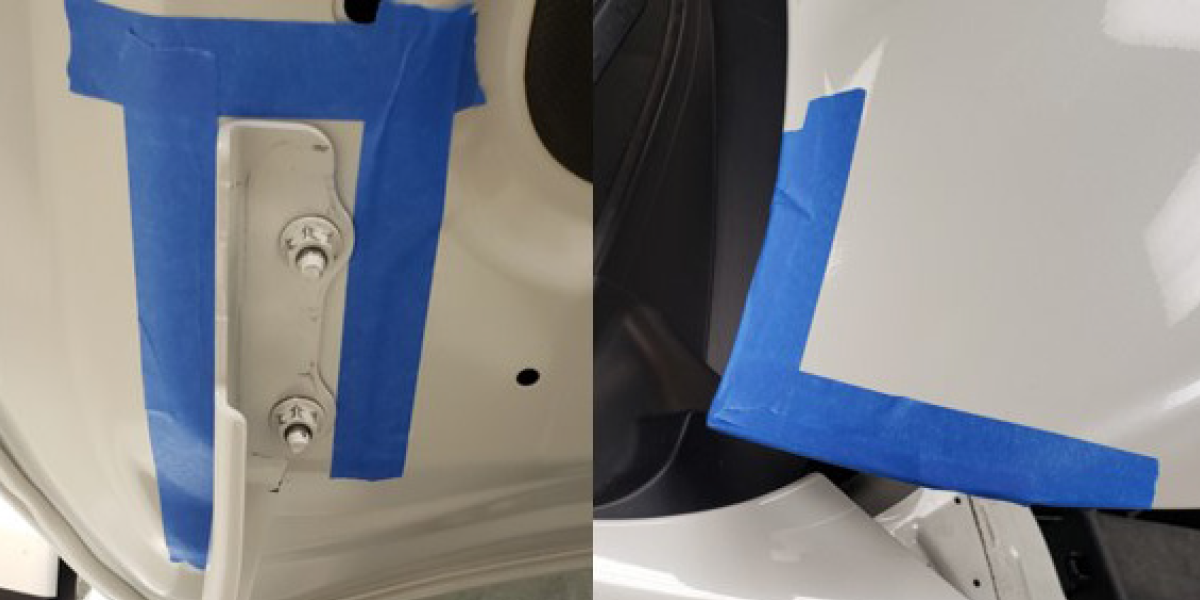

Step 1 - Masking Hood Hinge
Mark the location of the hood hinges with tape and tape the edges of the hood to prevent scratching.

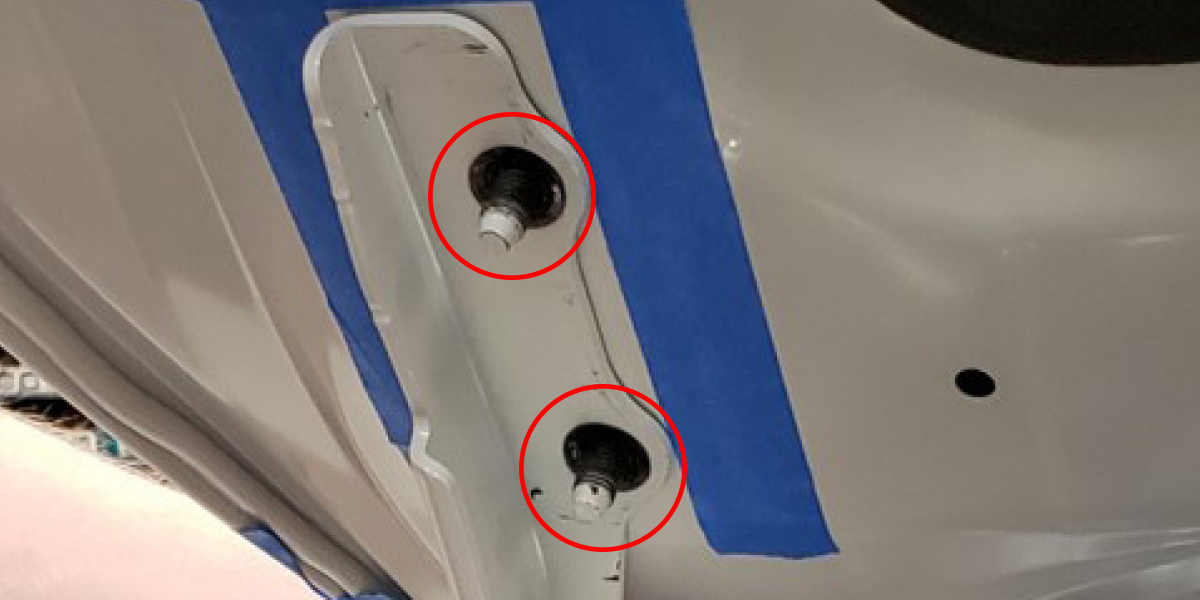

Step 2 - Remove 12mm Bolts
Remove the two (2) 12mm bolts securing the hood hinge, while holding the back of the hood.
Step 3 - Place/Align Ditch Light Bracket
Place the ditch light bracket under the hinge and align the holes with the hood hinge. Adjust the bracket to leave a slight gap at the back of the hood before tightening.

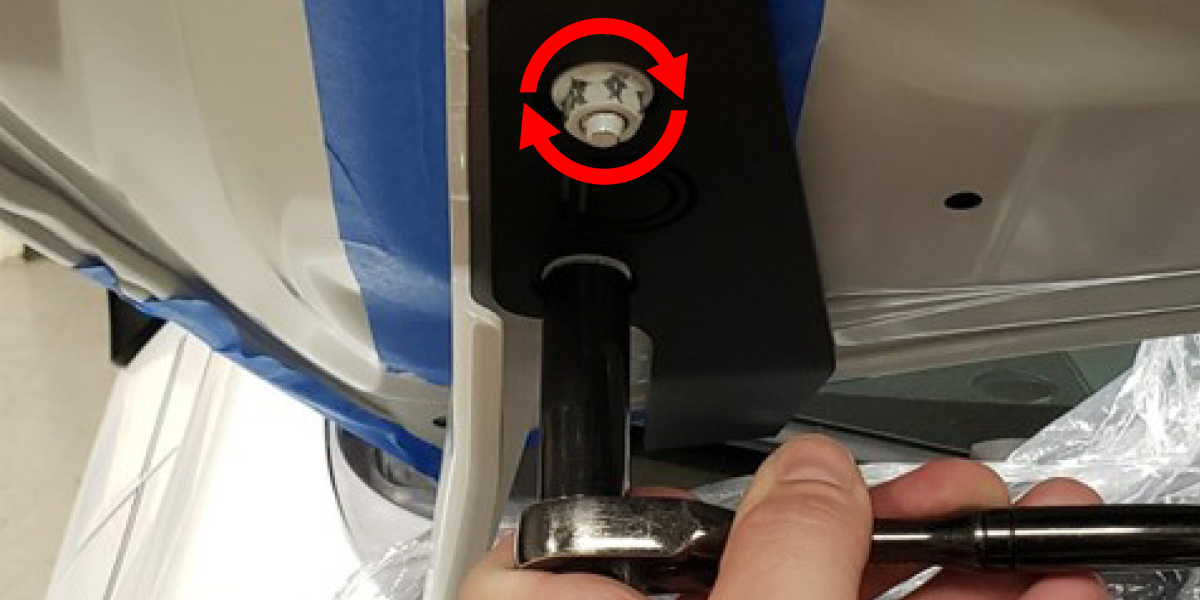

Step 4 - Secure Ditch Light Bracket
Secure the bracket and hood hinge using the factory bolts, ensuring the hood hinge lines up with the tape.

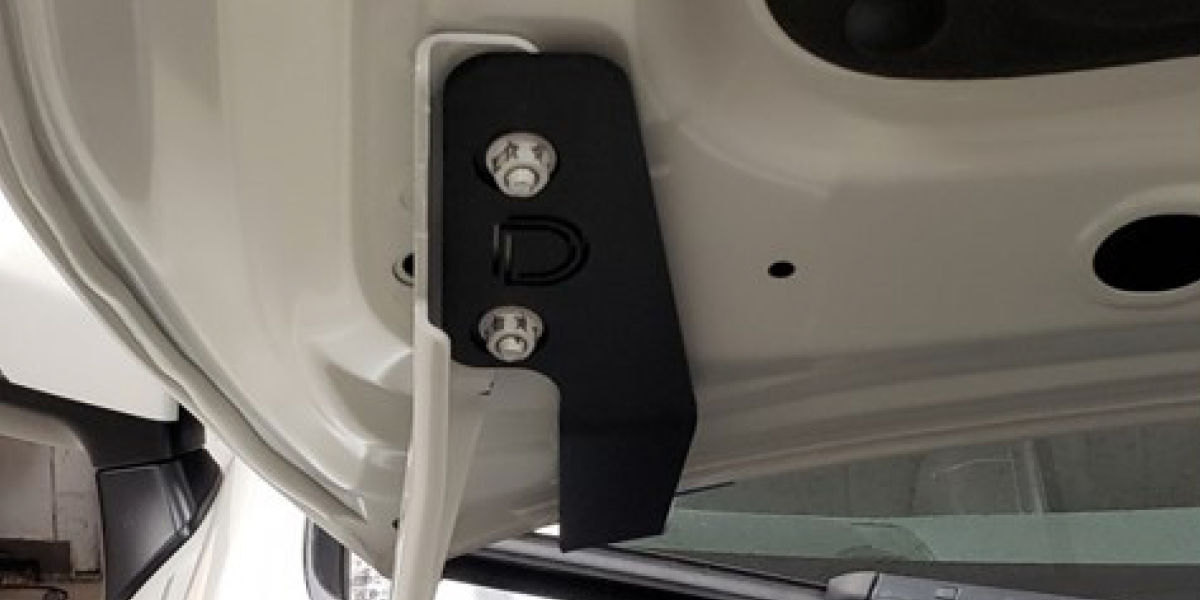

Step 5 - Remove Masking Tape
Remove the tape and repeat the steps on the other side to complete the installation.

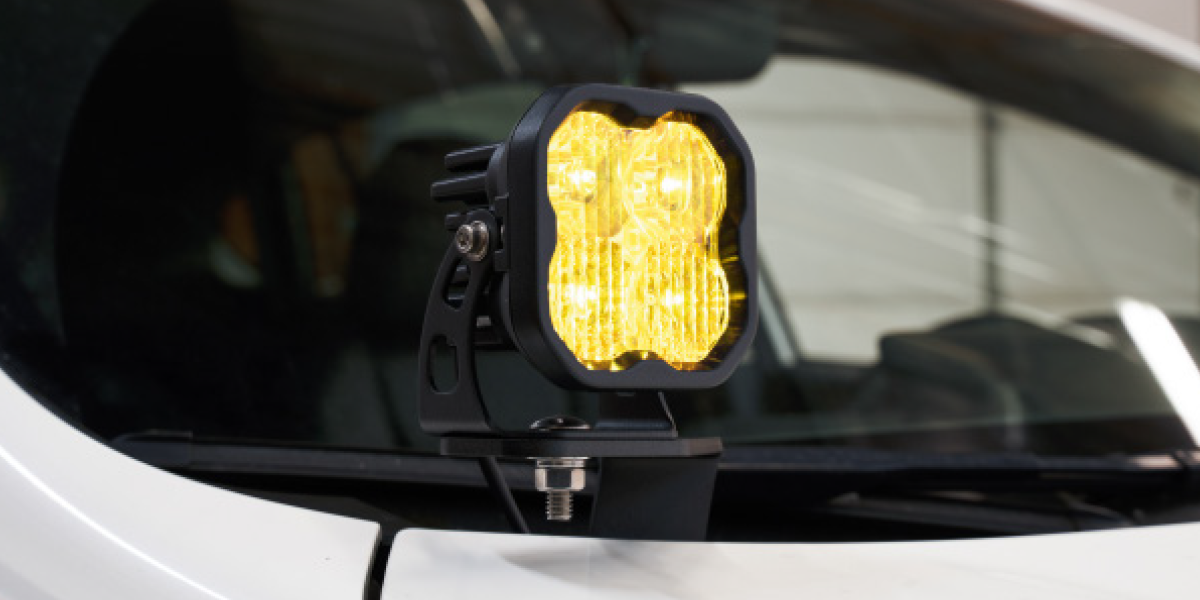

Step 6 - Mounting Stage Series Pods
Once the bracket is mounted to the hood, refer to the SSC2 or SS3 Universal Bracket Info/Mounting Guide, to mount your pod onto the bracket.
Questions About the Installation?
If you have any questions or issues installing the Stage Series Backlit Ditch Light Kit for the 2018-2023 Subaru Crosstrek, please contact us for further assistance.
Where Can I Buy a Stage Series Backlit Ditch Light Kit for the 2018-2023 Subaru Crosstrek?
If you’re ready to upgrade your 2018-2023 Subaru Crosstrek with a Stage Series Backlit Ditch Light Kit, you can purchase one by clicking here or using our dealer locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: DD6557, DD6562, DD6564, DD6558, DD6560, DD6563, DD6565, DD6559, DD6561
