Stage Series Reverse Light Kit for 2022-2024 Ford Maverick

$39.95
In stock for immediate shipment.

Features

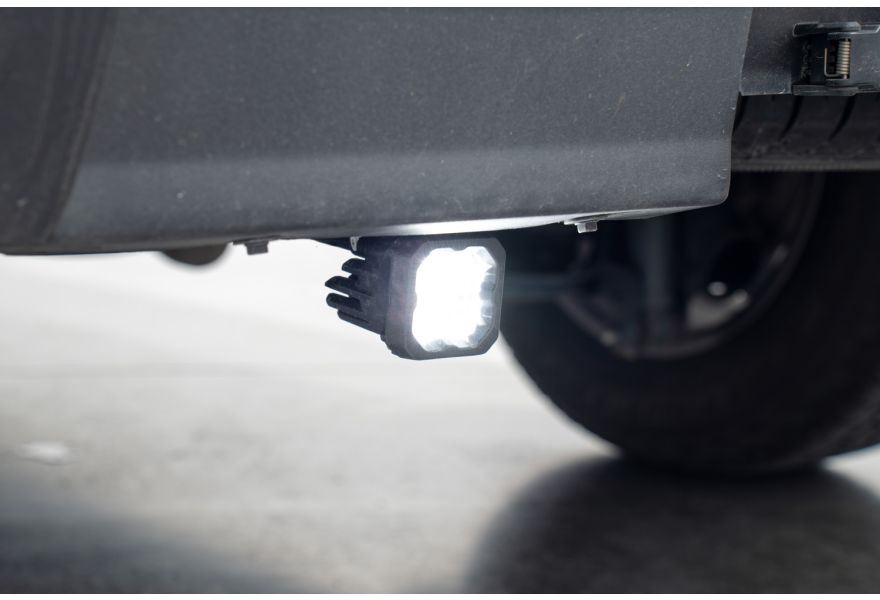

  • Mount two SSC1 LED pods underneath the 2022+ Ford Maverick rear bumper.
  • Provides high-power reverse light, and red accent light.
  • Connects to factory tail light wiring for simple, everyday operation of lights.
  • Bolts on to rear bumper, no cutting or modification to factory bumper.
  • Designed and assembled in USA.

Overview

Overview. There are plenty of ways to add light behind your Ford Maverick, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes a powerful reverse light and an integrated red running light! The included plug-and-play harness allows you to activate the LED pods automatically with your reverse lights, for a truly integrated solution.

Plug and Play. Thanks to custom-molded OEM connectors, this kit is completely plug-and-play. The included adapter harness plugs right into your factory tail light wiring for easy installation and operation. No cutting, drilling, or routing wires to the frontend! The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. If you would like to have override functionality to manually turn on the main beam anytime, you will need to purchase the universal backup harness.

Brighter Backup. Factory reverse bulbs just don't provide enough light output to back up at night confidently. By pairing our patented TIR optics with high-powered LEDs, the pods included in this kit provide an additional reverse light that's several times brighter than stock bulbs alone. Plus, they automatically come on when the vehicle is put in reverse!

Additional Running Light. The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

Stage Series C2 Beam Patterns

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • Two (2) SSC1 Standard LED Pods
  • One (1) Reverse Light Wiring Harness for Ford Maverick 2022-2024
  • Two (2) Mounting Brackets
  • Mounting hardware
  • Installation guide
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: This kit is not compatible with our C1R LED pods.

Application: Backup/Reverse Light
Make: Ford
Model: Maverick
Years: 2022, 2023, 2024

Specifications

NOTE: Specifications listed here are for each individual SSC1 pod.
Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
SSC1 Sport 400 cd 4 lux 1,030 lm 1,449 lm 6000K White
SSC1 Pro 925 cd 9 lux 2,300 lm 2,375 lm 6000K White



Main Beam Power (watts): Sport: 12.8, Pro: 19
Backlight Power (watts): 0.3
Main Beam Current (amps @ 12.8V): Sport: 1, Pro: 1.5
Backlight Current (amps @ 12.8V): 0.024
Datasheet(s) (click to download): SSC1 Sport White Standard, SSC1 Pro White Standard
Color Temp (CCT): 6000K
Operating Voltage: 9-16V
Wire Size: 18AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Cree XP-L HI, Cree XHP50
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
Unit Weight (lb): 0.1
Product Weight (lb): 0.3
Application: Backup/Reverse Light
Make: Ford
Model: Maverick
Years: 2022, 2023, 2024

What's Included

100% Satisfaction Guarantee

Installation

NOTE: The C1 Pro Reverse Light Kit cannot be installed alongside the C1 HitchMount Kit. The C1 Sport Reverse Light Kit can be installed with the C1 HitchMount Kit.

Installation Time: 10-20 minutes

Tools Needed: Basic Toolset

Modification: None

Installation Guide: Click to download

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
