Stage Series Flush Mount Reverse Light Kit

$219.95
In stock for immediate shipment.

Features

  • Allows for flush installation of SSC1 or SSC2 LED pods in the rear bumper.
  • Connects to vehicle wiring for simple, everyday operation.
  • Provides high-power reverse light, and red accent light.
  • Durable powdercoated aluminum construction.
  • Designed and assembled in USA.

Overview

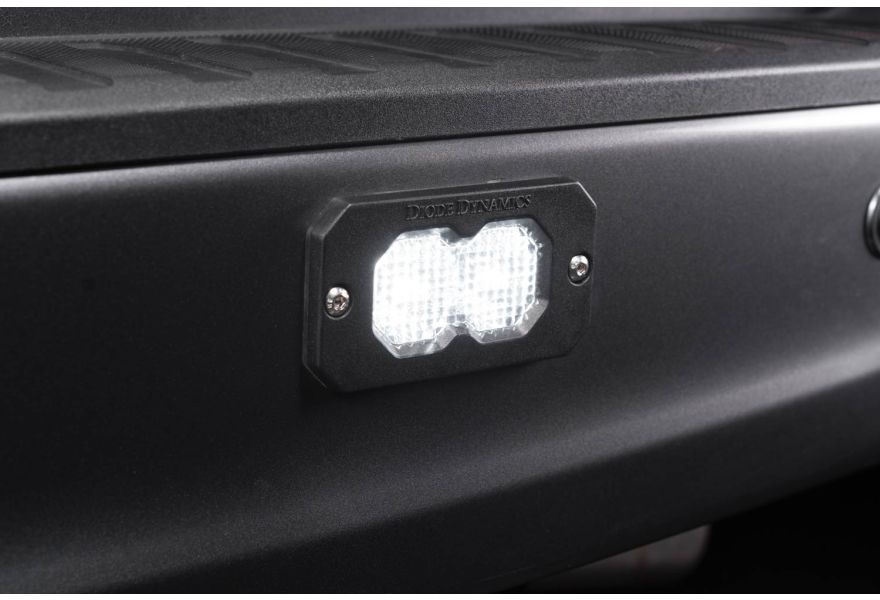

Overview. Add significantly more light output when backing up at night with our Stage Series Flush Mount Reverse Light Kit! This kit allows you to mount two flush mount SSC1 or SSC2 LED pods in your rear bumper, adding a high-power reverse light, along with a red accent light. With the included wiring harness, this kit connects to your vehicle's wiring for simple, everyday operation.

Backlight Functionality. The Stage Series LED pods included with this kit feature a distinctive backlight feature in a vibrant red color which can be used as additional accent lights while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

Simple connections. The included wiring harness allows you to connect this kit to your vehicle's wiring for simple, everyday operation. The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 LED pod, and a 60x60 degree spread on the SSC2 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

Stage Series C2 Beam Patterns

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • Two (2) SSC1 or SSC2 Flush Mount LED Pods
  • One (1) Universal Reverse Light Wiring Harness
  • Two (2) Flush Frame Gaskets
  • Ten (10) Zip Ties
  • Two (2) T-Taps
  • Mounting hardware and drilling template
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Specifications

NOTE: Specifications listed here are for each individual pod.
Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
SSC1 Sport 400 cd 4 lux 1,030 lm 1,449 lm 6000K White
SSC1 Pro 925 cd 9 lux 2,300 lm 2,375 lm 6000K White
SSC2 Sport 375 cd 4 lux 871 lm 1,130 lm 6000K White
SSC2 Pro 700 cd 7 lux 1,988 lm 2,898 lm 6000K White



Datasheet(s) (click to download): SSC2 Sport White Flush Mount, SSC2 Pro White Flush Mount
Color Temp (CCT): 6000K
Power (watts): SSC1 Sport: 12.8, SSC1 Pro: 19, SSC2 Sport: 7.7, SSC2 Pro: 25.6
Operating Voltage: 9-16V
Current (amps @ 12.8V): SSC1 Sport: 1, SSC1 Pro: 1.5, SSC2 Sport: 0.6, SSC2 Pro: 2
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
Unit Weight (lb): SSC1: 3.1 SSC2: 3.3
Product Weight (lb): SSC1: 3.5 SSC2: 4

What's Included

100% Satisfaction Guarantee

Installation

SSC1 Installation Guide: Click to download

SSC2 Installation Guide: Click to download

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: Basic Wiring Only

Wiring Instructions: Click here

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
