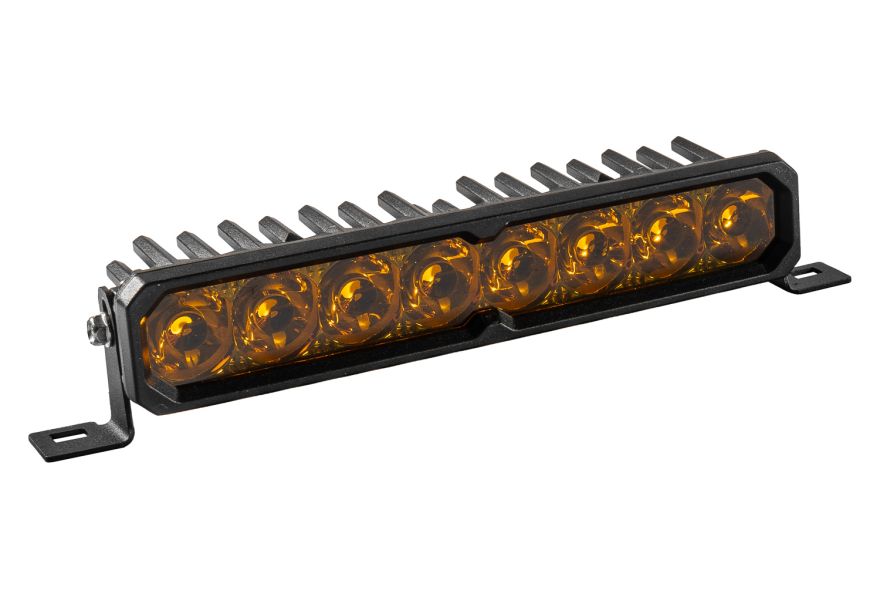

SS10 SAE/DOT Yellow LED Light Bar (one)

Features

• Patented TIR Optics for maximum efficiency and output.
• Upgraded beam patterns engineered for real-world performance.
• True amber backlight provides unique accent lighting.
• Now available in Sport, Pro, and Max power levels.
• Durable aluminum housing with ASTM-standard powdercoat finish.
• Built for the extreme with IP69K waterproof rating.
• Limited Lifetime Warranty.
• Made in USA with Global Materials.

Overview

See Further and Go Faster with all-new SS10 LED Light Bar! With higher light output, modern optics, and greater intensity than anything else on the market — plus advanced control and unmatched configurability — the new Stage Series Lightbars are the most capable lightbars available today.

Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

Thanks to copper circuit boards on the high-power models, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.

Built for Every Application. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before. No matter the application, there is a Stage Series Lightbar for you!

The all-new Combo/Driving pattern has been engineered to blend distance and width into one balanced beam pattern. Everyone wants a great all-around light, and while other options on the market try to tackle this by combining two patterns, the resulting output is less than desirable–spot gives you a harsh hotspot, while a flood or wide pattern produces unwanted glare and wasted light. Our new Combo/Driving optic uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees and gives you throw downrange while still providing ample foreground illumination. It’s the ideal choice when you want one bar that can handle just about any situation, and it elevates the standard for what a Combo light should be.

SAE Driving is designed to supplement your high beams, but it's also great for general illumination, providing extra punch and distance ahead, without being a tight spot pattern. The SAE Driving pattern is a slightly broad-spot that balances reach and width with a spread of 20x12 degrees. If you’re looking to add extra distance and output to your setup, this is the perfect option.

Flood pattern provides a uniform, even illumination with a broad 100x80 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses advanced pillow optics on the outer lens surface, to provide a true optically-designed spread, for smooth, even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers, campsites, and work areas.

Spot shines light directly from the unmodified TIR optic in a tight, long-distance beam, resulting in a highly focused 8x8 degree beam of light. The Spot pattern is ideal for high-speed desert racing, rally stages with big straightaways, or anytime you need to see far ahead with precision.

Fully Illuminated Backlight. All yellow Stage Series LED Light Bars now include an amber backlight that fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED light bars. This amber backlight is perfect for forward-facing applications to provide extra visibility to others when stopped on the trail.

Choose Your Power Level. The SS10 LED Light Bar is available in three different power levels. All options use high-intensity, automotive-grade LED emitters and TIR optics for unmatched focus and output. The Sport model offers the best bang for your buck, while the Pro model takes things a step further with a noticeable boost in power. The Max model is designed with cutting-edge automotive emitters for both high power and extreme intensity, using the same Osram HX Boost LEDs found in our Max power level SS3 and C2 2.0 LED Pods.

Swappable Optics and Colors. Just like the rest of our Stage Series lineup, the lenses on the SS10 LED Light Bar are swappable. All Stage Series LED light bars use 6000K Cool White LED emitters. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white!

Snap-On Covers. Protect your investment or take the customization even further with our full lineup of Snap-On Lens Covers! Available in clear, smoked, yellow, black, or amber, these covers install in seconds with no tools required. Just snap on and go!

CrossLink. Looking to customize your setup even further? The SS10 is compatible with our mini CrossLink technology, allowing you to connect multiple LED light bars to create your own unique configuration, including curved setups. Click here to view our Stage Series LED Light Bar CrossLink mounting solution.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
