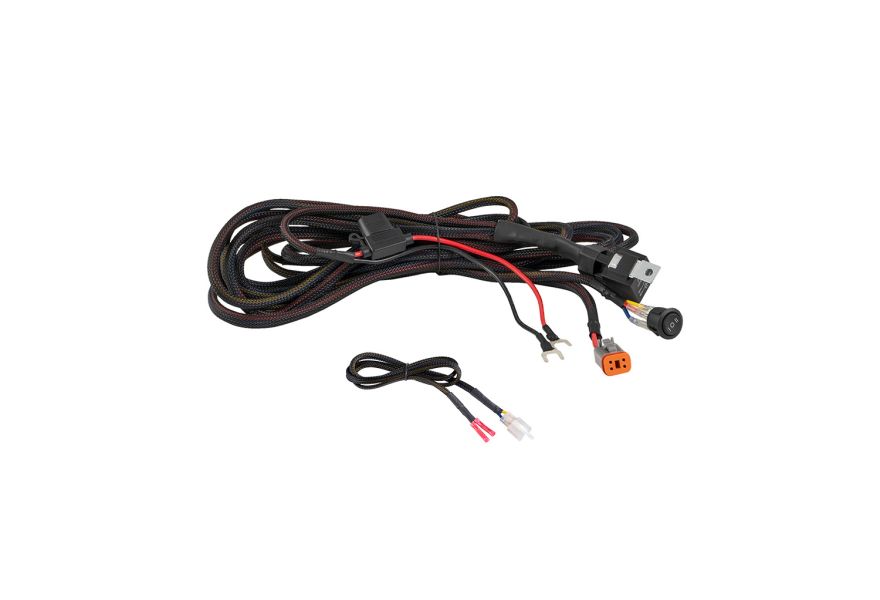

Heavy Duty Single Output 4-pin Wiring Harness

$39.95
In stock for immediate shipment.

Features

  • Powers Diode Dynamics LED pods with backlight functionality.
  • Connects directly to the battery to power your LED pods.
  • High capacity 14AWG wiring.
  • Single Deutsch DT output connector.
  • 30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.

Overview

Stage Series. This harness is intended to be used with our Stage Series LED Pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and a Deutsch DT connector for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.

  • C1 Sport: 1.2A
  • C1 Pro: 1.7A
  • SSC2 Sport: 0.6A
  • SSC2 Pro: 1.75A
  • SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
  • SS3 Pro Mainbeam: 2.7A, Backlight: 0.03A

Control through OEM Aux Switches. This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the included toggle switch adapter wire to mount a switch.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • One (1) wiring harness
  • One (1) toggle switch
  • One (1) OEM aux switch adapter
Quantity: One (1)
Warranty: 3 year warranty

Fitment

NOTE: This harness is intended to be used with our Stage Series pods with backlight functionality. If you are looking to power non-backlit Stage Series products, click here.

Specifications

Operating Voltage: 9-16V
Wire Size: 14AWG
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): DT 4-Pin
Shipped Weight (lb): 1.1

What's Included

Installation

Wire Colors:

  • Blue: Backlight
  • Red: Power In
  • Yellow: Main Beam

Installation Time: 5-10 minutes

Tools Needed: None

Modification: None

Installation Guide: Click to download

Warranty

3 Year Replacement Limited Warranty

All Diode Dynamics products come with a 3 Year Worry-Free Warranty.

If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.
