The Stage Series Backlit Ditch Light Kit for the 2016-2023 Toyota Tacoma allows you to easily mount two SSC2 or SS3 Backlit Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling is required! This kit features a low-profile design while minimizing glare, and will not interfere with raising or lowering the hood. Check out the installation video and continue reading for step-by-step instructions below!
Table of Contents
Installation Video
Installation Tools
- Masking Tape
- 12mm Socket
Mounting Instructions

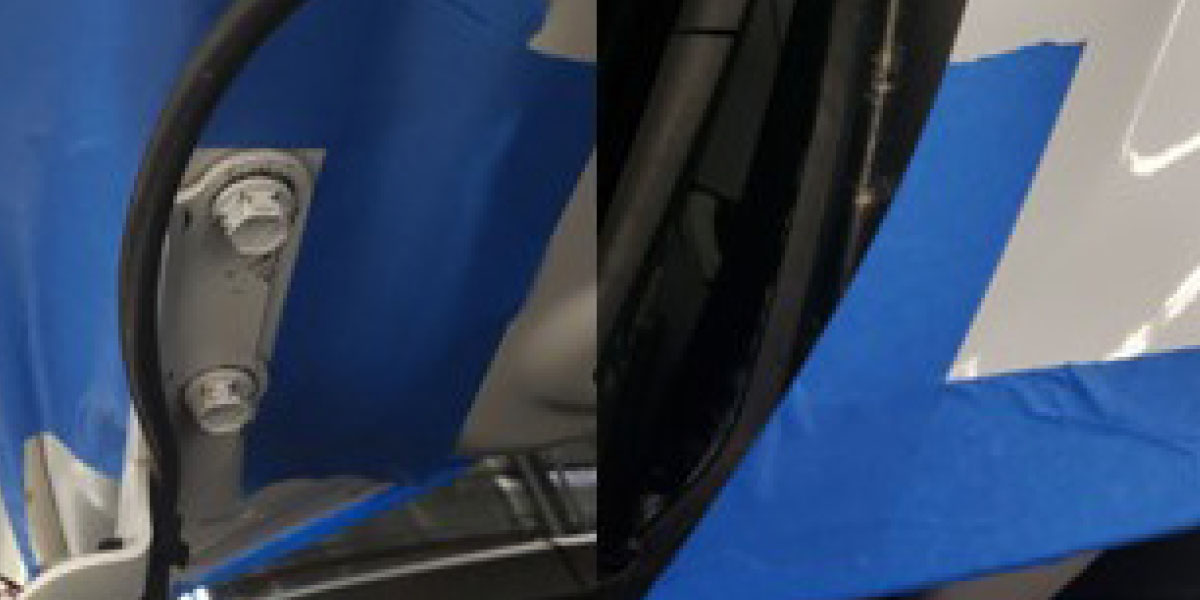

Step 1 - Mark Hood Hinge With Tape
Mark the location of the hood hinges with tape, and tape the edges of the hood to prevent scratching.

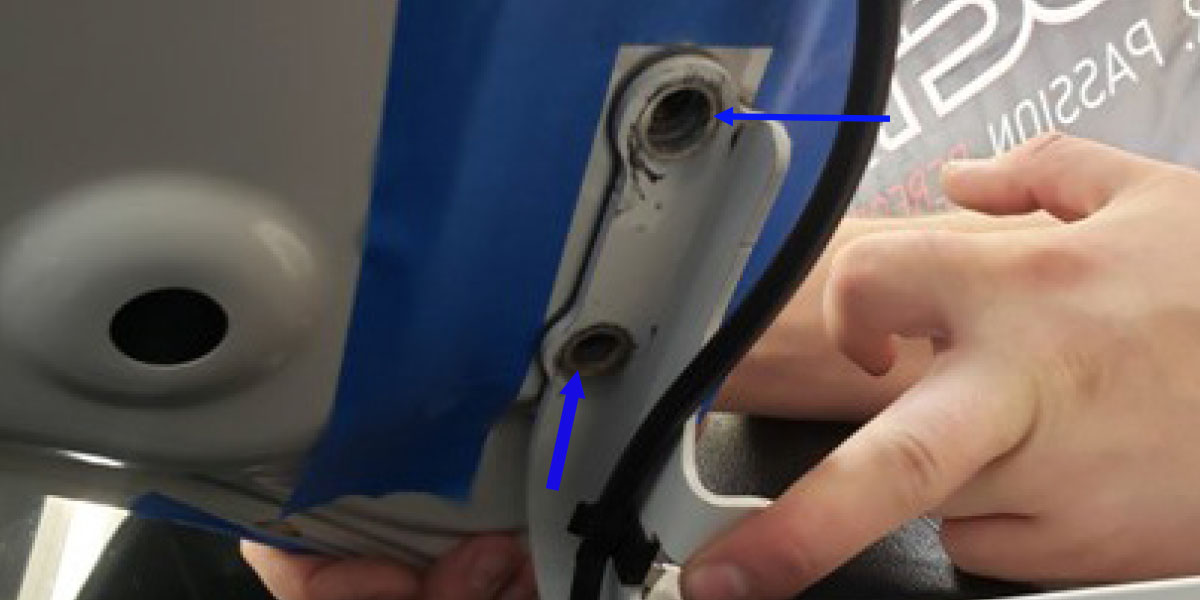

Step 2 - Remove Factory Hood Bolts
Remove the two (2) 12mm bolts securing the hood hinge, while holding the back of the hood.

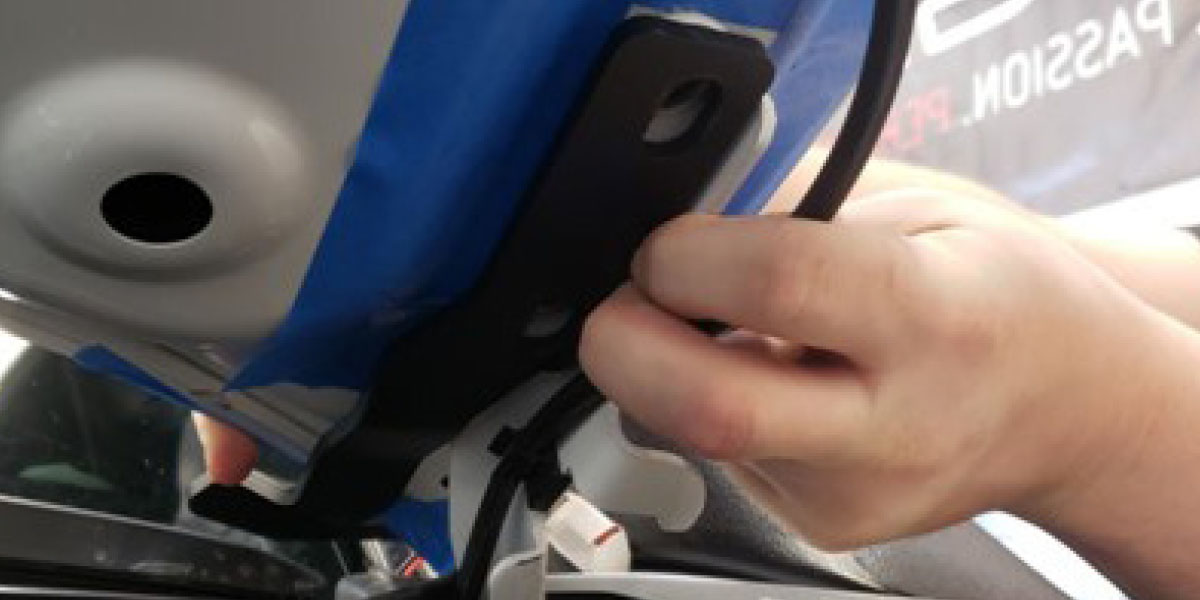

Step 3 - Place Ditch Light Bracket
Place the ditch light bracket under the hinge and align the holes with the hood hinge. Adjust the bracket to leave a slight gap at the back of the hood before tightening.

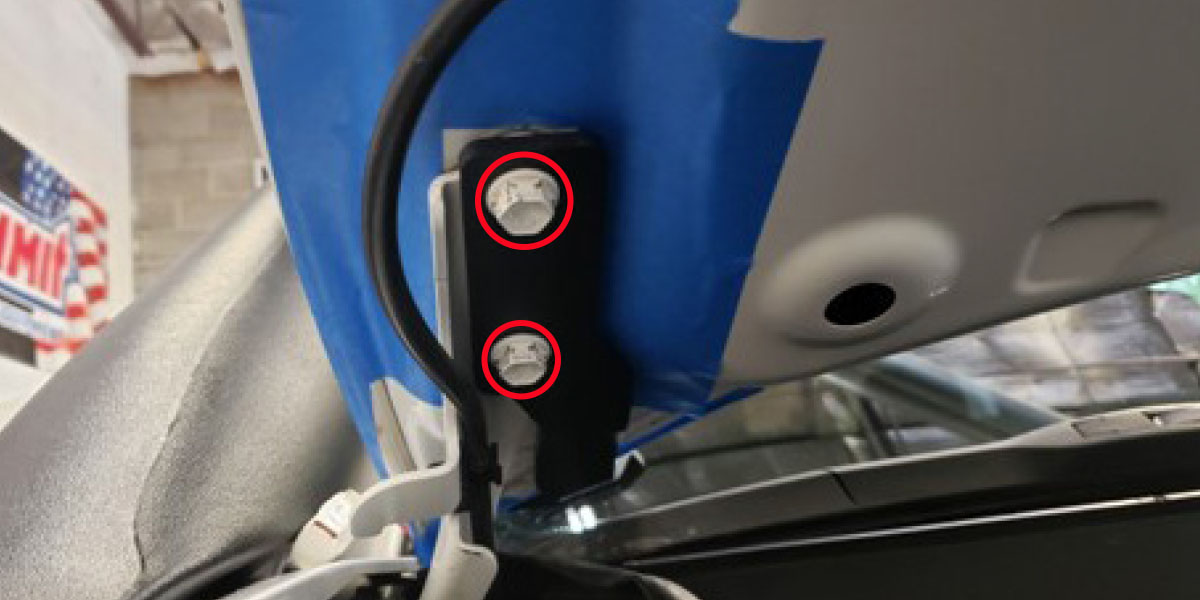

Step 4 - Secure Bracket and Hood Hinge
Secure the bracket and hood hinge using the original bolts (circled in red below), ensuring that the hood hinge lines up with the tape where you marked it.

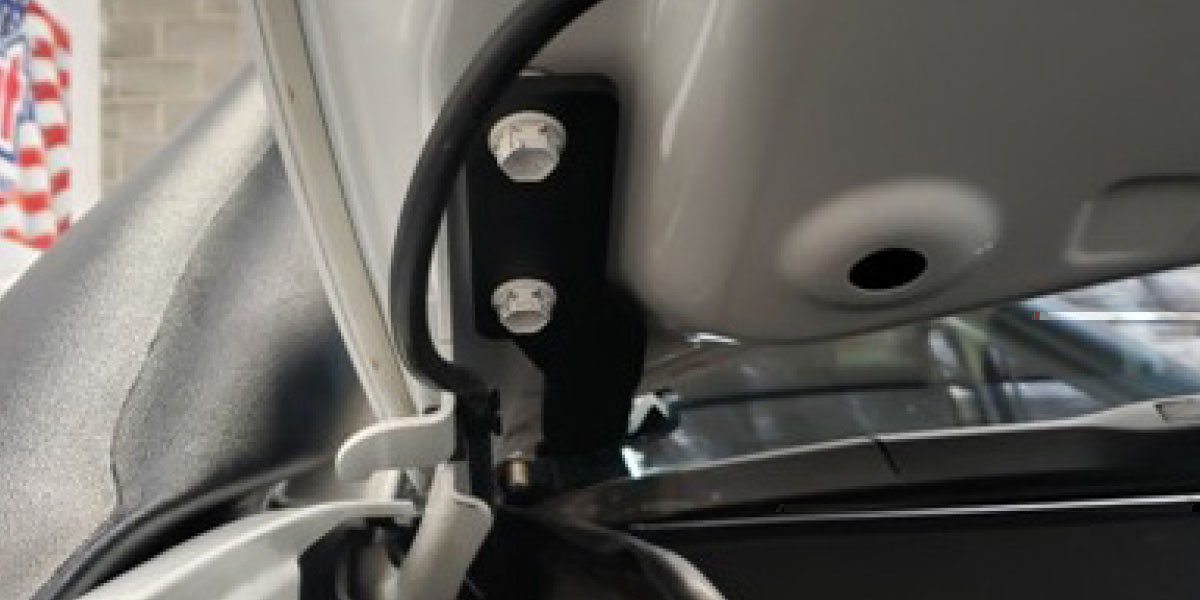

Step 5 - Remove Tape, Repeat on Other Side
Remove the tape and repeat the steps on the other side to complete the installation.

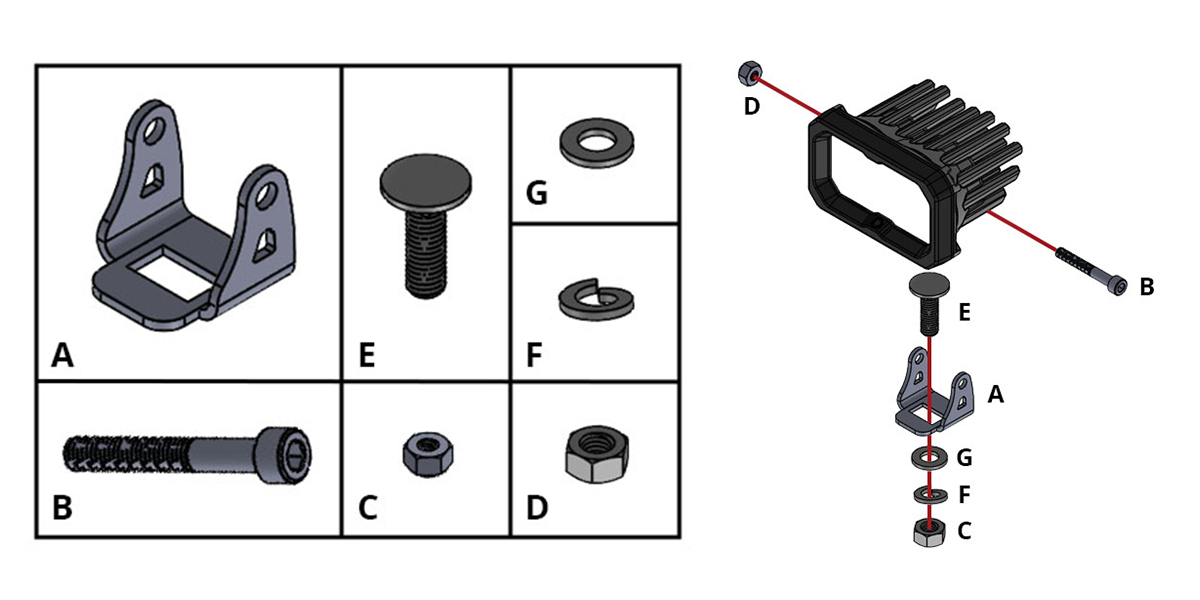

Step 6 - Assembling Stage Series LED Pods
Since this kit is offered with our SSC2 or SS3 LED Pods, the assembly process will vary.
Please refer to the assembly guides provided below:
Assembly Guide | SSC2 LED Pods
Step 7 - Mounting Stage Series LED Pods
Place the assembled Stage Series LED pod on top of the ditch light bracket. Then, feed the carriage bolt through the universal bracket and ditch the light bracket followed by the washer, lock washer, and nut underneath, and tighten it only hand tight to leave room for adjustment later.

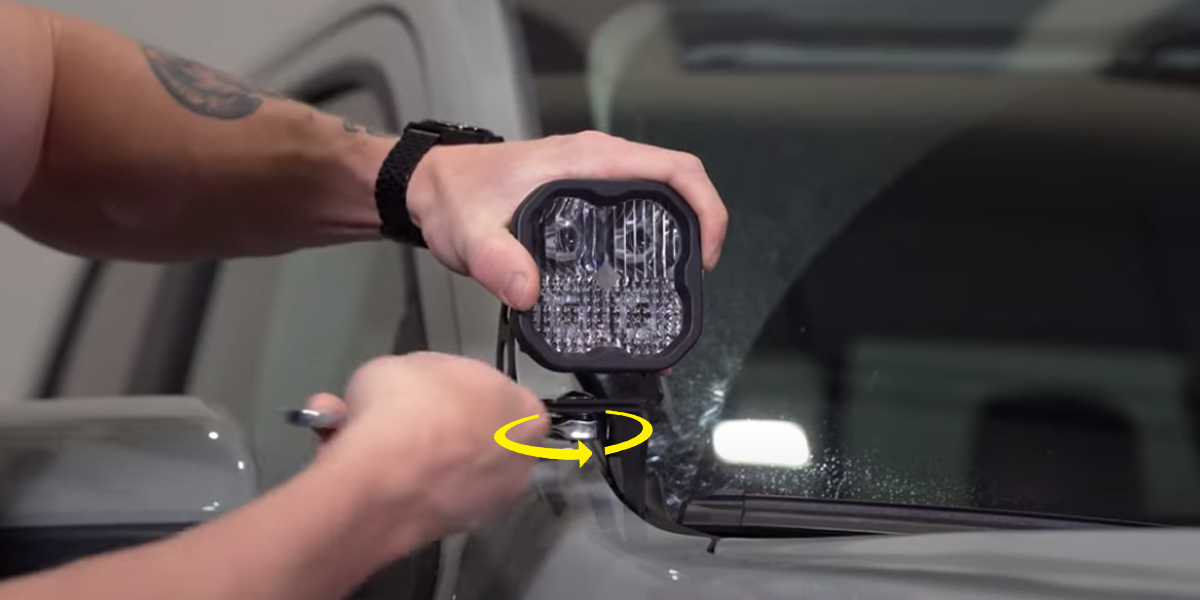

Make final aiming adjustments before securely tightening the pods down.
The installation is now complete. Enjoy your Stage Series Backlit Ditch Light Kit for the 2016-2023 Toyota Tacoma!
Questions About the Installation?
If you have any questions or issues installing the Stage Series Backlit Ditch Light Kit for the 2016-2023 Toyota Tacoma, please contact us for further assistance.
Where Can I Buy a Stage Series Backlit Ditch Light Kit for the 2016-2023 Toyota Tacoma?
If you’re ready to upgrade your 2016-2023 Toyota Tacoma with a Stage Series Ditch Light Kit, you can purchase one by clicking here or using our dealer locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: DD6371, DD6372, DD6373, DD6374, DD6375, DD6376, DD6377, DD6378, DD6379
