Triple Pro-Series Multicolor Demon Eyes (set)

$159.95
In stock for immediate shipment.

Pro-Series RGBW Multicolor Demon Eyes

  • 18 watts of LEDs for full multicolor and true white illumination
  • Full aluminum construction, with added heatsinking
  • Includes six demon eyes and two drivers, for custom installations
  • Fully waterproof and shockproof constant-current drivers
  • Small size for easy custom installations
  • Designed and assembled in the USA

Overview

Demon Eyes are small, high-power LEDs that illuminate the projector lens inside your headlight, for a unique, custom look. With multicolor RGBW LEDs, they can be paired with our Bluetooth Controller for full control from an app on your phone! After years of experience engineering demon eyes at our facility in USA, we are pleased to announce the new Pro Series Demon Eye.

Brighter is better. Pro Series Demon Eyes were engineered from the ground up to be the brightest and most reliable units on the market. Using a total of 18 watts of LED chips, full aluminum substrate with heatsinking, wire-to-board connectors, and constant-current external drivers with shutoff, these Demon Eyes will shine with enough output to be visible in daylight, while staying cool and reliable in operation. Ask any professional installer - Diode Dynamics demon eyes are the brightest ones made.

Installation required. Headlamps must be opened up in order to install, so professional installation is recommended. Once you're in, you can custom-mount in any reasonable location, to shine light into the projector area. Then, wire up using an RGBW Controller (not included) and connect the shutoff wire to your low beams, so the demon eyes will shut off when your headlamps are turned on, keeping the demon eyes cool.

Full RGBW. Full multicolor, with no sacrifice. Unlike other RGB Demon Eyes on the market that produce a mixed white color, our Pro Series Demon Eyes are RGBW, with independent White LEDs. After you have fun with colors, just select True White for a crisp, clean white output for everyday use.

App Control. With our optional Bluetooth controller, you can choose any color under the sun, including True White. There's preset patterns too, including strobe, fade, and more. But it's the extras that really make this controller special. Simple features like Preset Colors make it easy to use, and fun features like Camera Match and Music Sync make it fun to show off! Don't see a pattern you like? Just program your own, and save it for later! This controller is the most fully-featured in terms of control and features on the market.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

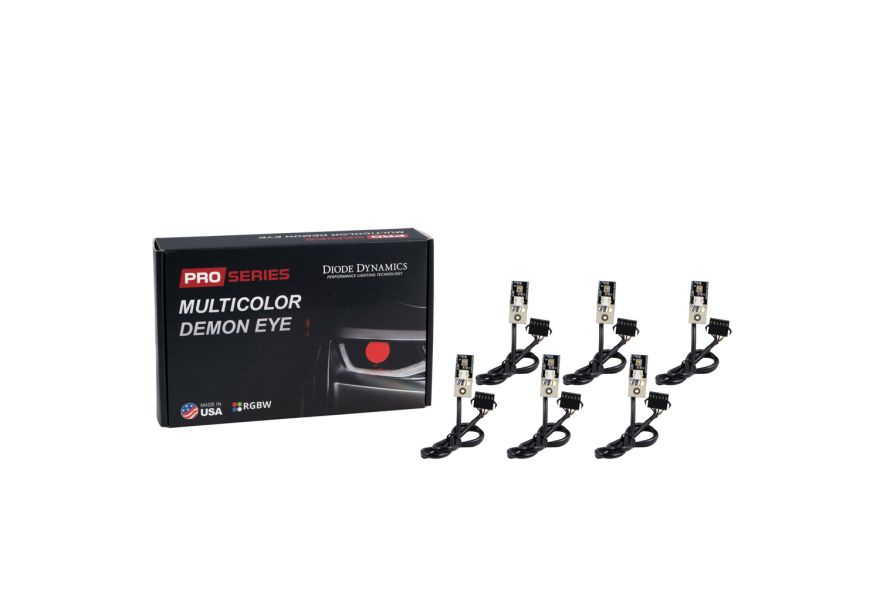

What's Included

In the Box:
  • Six (6) Pro Series Demon Eyes
  • Two (2) 4-way RGBW drivers
  • Four (4) T-Taps
  • One (1) Dual-Input Module
  • One (1) M8 Extension Wire
  • Installation guide

An RGBW Controller is required for operation (not included, sold separately).

Quantity: Six (6)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Specifications

  • 18 watts of LEDs, RGBW, for full multicolor and true white illumination
  • Full aluminum construction, with added heatsinking
  • Wire-to-board connectors for easy installation and reliability
  • Fully waterproof and shockproof constant-current drivers
  • Shutoff wire to deactivate LEDs when headlamps are turned on
  • Small size for easy custom installations
  • Designed, tested and manufactured in the USA
Datasheet(s) (click to download): RGBW Demon Eyes

An RGBW Controller is required to use this product.
Click here to see options.

Beam Angle: Omnidirectional (270 degrees)
Operating Voltage: 9-16V
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: High-Power Chip Scale Package (CSP)
Connector(s): JST 5-pin Input (+GRBW), M8 Input
Driver Features: External, Waterproof, Constant Current
Driver Dimensions: 2.5" x 1.38" x 0.88"
Materials: Aluminum PCB, Aluminum Heatsink
Cooling: Passive, heatsink
Compliance Ratings: SAE J575 Durability Test
Unit Weight (lb): 0.53
Product Weight (lb): 1.05
Shipped Weight (lb): 1.25

What's Included

100% Satisfaction Guarantee

Installation

  • Headlamps must be opened for installation (professional installation recommended)
  • Demon eyes can be mounted with adhesive or custom brackets
  • RGBW controller required for operation (not included)

Installation Time: 1-2 hours (after headlight is open)

Tools Needed: Basic Toolset

Modification: Open and Reseal Lamp

Installation Guide: Click to download

Wire Colors: To make these boards work with factory lighting functions on the , we recommend tapping to the following wires.

Warranty

3 Year Replacement Limited Warranty

All Diode Dynamics products come with a 3 Year Worry-Free Warranty.

If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.
