Stage Series Single-Color LED Rock Light Kit (8-pack)

$479.95
Backorder: Order placed today will ship in estimated 3-4 weeks. Backorder: Order placed today will ship in estimated 3-4 weeks.

Click here to view additional mounts, extension wires, harnesses, and more!

Features

  • 10-watt, 1000 lumen peak output.
  • Interchangeable, optically-designed lenses.
  • Modular mounting options built-in, with additional accessory mounts.
  • Fully-encapsulated, durable design backed by an 8-year warranty.

Features

  • Convenient center-mount or magnet mount installation.
  • Includes all necessary wiring and mounting hardware.
  • Aluminum heatsink with signature Ico Bezel shape.
  • Thick, durable lenses, engineered to spread light.
  • Engineered and Assembled in USA.

Overview

Looking to light up the trail at night? Look no further. Introducing the Stage Series LED Rock Light Kit! Designed for superior durability and maximum performance, Stage Series LED Rock Lights have set a new standard in the offroad category. This kit includes all the wiring and hardware necessary to mount four Stage Series LED rock lights, making it easier than ever to add rock lights to your vehicle.

Unmatched Light Output. With a true power draw of over 10 watts, the Stage Series Rock Light provides a peak output of 1000 lumens. Even with claims of high power, generic rock lights run at only a few watts, making the Diode Dynamics Rock Light a huge step up for the entire category.

Optically-Engineered, Interchangeable Lenses. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? Our single-color rock light kit includes four amber and four red lenses, allowing you to change the color of your rock lights for maximum versatility. Click here to find extra interchangeable lenses.

Dual Power Levels. The Stage Series Rock Light uses a simple 3-wire system, allowing you to select a low-power or high-power mode. At 3 watts of output, the low-power mode is actually on-par with the max output of most generic rock lights! If you want to light up a campsite and you don’t need all 800 lumens, the low-power mode is a great way to conserve battery power. This 3-wire setup also provides much more functionality on custom off-road builds. By tying the low and high power wires into your factory harness, you can use them as a dual-function running/brake light, or running/turn signal, all in one simple package.

Mount it Your Way. Our Rock Light Kit can be mounted using the center bolt mounting point that is neatly hidden underneath the lens and comes standard, or you can select the magnet mount option. Our magnet mounts feature an overmolded design that keeps your rock light secure using the integrated mounting hole. With N42 magnets providing an approximate pull/holding force of 35lbs, you can rest assured that the magnet won't go anywhere!

Simple Connections. For maximum convenience, these lights include a waterproof M8 barrel-style connector with a 10-inch lead. This provides a secure, waterproof connection and is compatible with the included plug-and-play harnesses. At only 8mm in diameter, it’s still easy to route the wires to where you need them.

Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:

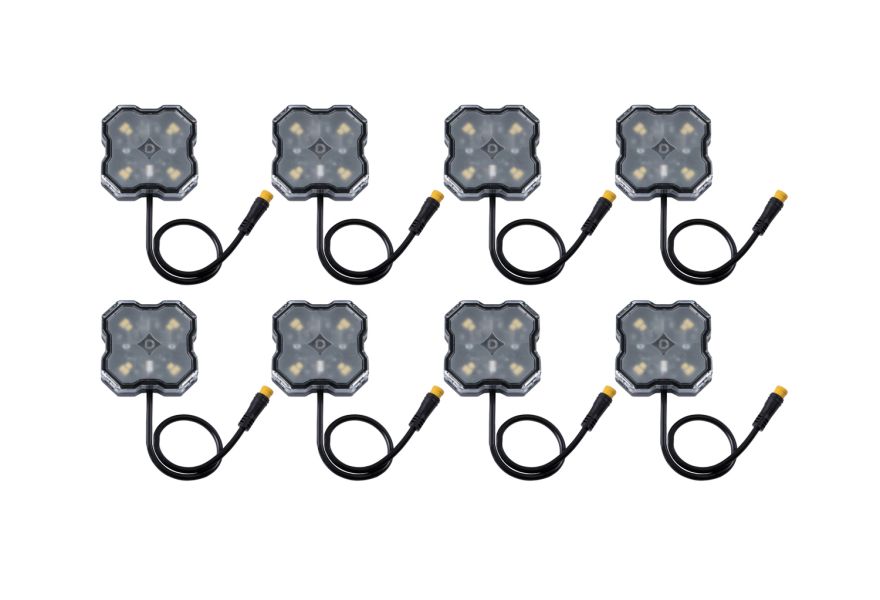

  • Eight (8) Stage Series Single-Color Rock Lights
  • Eight (8) Amber Rock Light Lenses
  • Eight (8) Red Rock Light Lenses
  • Eight (8) Rock Light Hardware Kits
  • Eight (8) Magnet Mounts (optional)
  • One (1) Rock Light Single-Color wiring harness
  • One (1) 1M Extensions
  • Four (4) 3M Extensions
  • Three (3) 5M Extensions
  • Four (4) M8 Splitters
  • Twelve (12) Zip Ties
  • Installation guide
Quantity: Eight (8)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Specifications

NOTE: Specifications listed here are for each individual Rock Light.
Lens Type High Power Output
(measured lumens)
Low Power Output
(measured lumens)
High Power Intesity
(candela)
No Lens 1000 lm 330 lm 360 cd
White Diffused 800 lm 240 lm 300 cd
Amber Diffused 410 lm 130 lm 150 cd
Red Diffused 70 lm 25 lm 31 cd



Color Temp (CCT): 5700K
Beam Angle: Round, 60°
Current (amps @ 13.2V): 1.1
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Connector(s): M8 Input
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP68 Waterproof
Product Dimensions (in): 2.4x2.4x0.6

What's Included

100% Satisfaction Guarantee

Installation

Installation Time: 30-60 minutes

Tools Needed: Basic Toolset

Modification: Basic Wiring Only

Installation Guide: Click to download

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
