Stage Series LED Lightbar Kit for 2019-2021 Ford Ranger

$39.95
In stock for immediate shipment.

Features

  • Direct fitment on the 2019+ Ford Ranger.
  • Allows you to mount two 6" light bars or one 18" light bar in the front bumper opening.
  • CAD-designed for perfect fitment and OEM-like appearance.
  • Utilizes existing mounting points for easy installation - no cutting or drilling required.
  • Highly durable powdercoated steel construction.

Overview

Perfect Fitment. The Stage Series LED Lightbar Kit for the 2019-2020 Ford Ranger from Diode Dynamics allows you to mount a pair of 6" light bars or one 18" light bar in the opening on the bumper. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. The 6" kit isn't just for off-road! When installed as a pair and aimed in accordance with your state's regulations, the Driving pattern meets SAE J581 as a Driving/Auxiliary High Beam Light, and the Wide pattern meets SAE J583 as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating the area around it in a full 80Wx50H degree spread. The Stage Series 18" Combo Light Bar features a single flood lens in the middle with two driving lenses on the outer edges.

light bar beam patterns

Proven Reliability. Stage Series lighting has been tested for long-term operation from -40 to 185 degrees F, vibration, moisture intrusion, and corrosion. All of these tests are completed to SAE/DOT standards, just like factory components. They've also been put to the test on-road, and are in-use by dozens of rally and endurance racing teams for nighttime stages and laps.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

What's Included

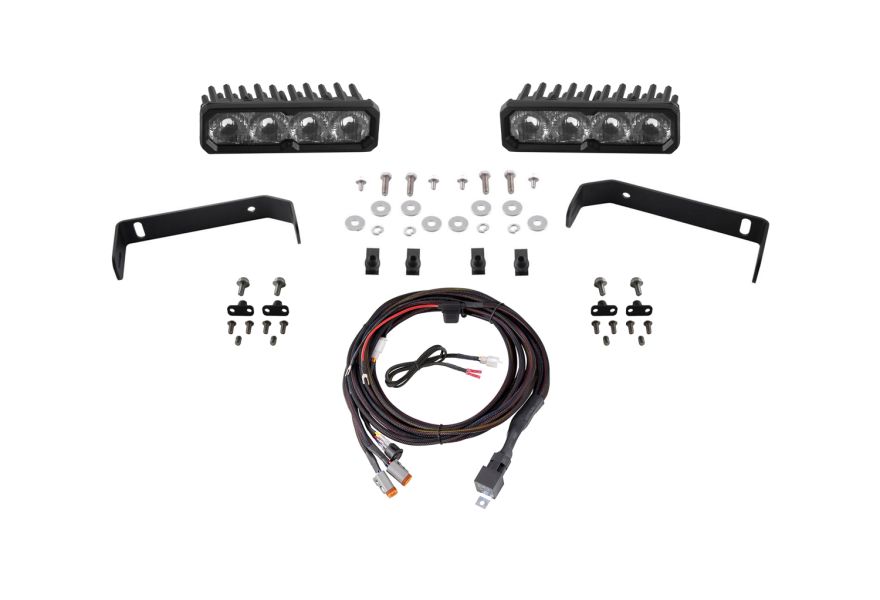

In the Box:

Two 6" Light Bar Kit

  • One (1) application-specific SS6 bracket kit
  • Two (2) SS6 6" Stage Series Light Bars
  • One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
  • One (1) Aux Switch Adapter Wire
  • All Necessary Hardware
  • Installation guide

One 18" Light Bar Kit

  • One (1) application-specific SS18 bracket kit
  • One (1) SS18 18" Stage Series Light Bar
  • One (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
  • One (1) Aux Switch Adapter Wire
  • All Necessary Hardware
  • Installation guide
Quantity: Single or Pair
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: The 18" kit is not compatible with the factory Adaptive Cruise Control. It will need to be removed in order to install the kit.

Make: Ford
Model: Ranger
Years: 2019, 2020, 2021
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

Stage Series 6" Light Bar

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
White Driving 55,000 cd 550 lux 1,400 lm 2,280 lm 6000K White
White Wide 13,000 cd 130 lux 1,400 lm 2,280 lm 6000K White
Amber Driving 33,000 cd 330 lux 800 lm 1,140 lm 2000K Amber
Amber Wide 7,400 cd 74 lux 800 lm 1,140 lm 2000K Amber



Stage Series 18" Light Bar

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
White Combo 99,500 cd 315 lux 4,200 lm 6,840 lm 6000K White
Amber Combo 47,800 cd 219 lux 2,400 lm 3,420 lm 2000K Amber

Color Temp (CCT): 2000K, 6000K
Beam Angle: Wide, 100°x8°, Driving, 20°x8°, Combo (Driving and Flood)
Power (watts): SS6: 26.6, SS18: 79.8
Operating Voltage: 9-24V
Current (amps @ 14V): SS6: 1.9, SS18: 5.7
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Powdercoated Steel
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Make: Ford
Model: Ranger
Years: 2019, 2020, 2021
Electrical Compatibility: No electrical issues (tested and confirmed)

What's Included

100% Satisfaction Guarantee

Installation

NOTE: The 18" kit is not compatible with the factory Adaptive Cruise Control. It will need to be removed in order to install the kit.


SS6 Installation Guide: Click to download

SS18 Installation Guide: Click to download

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: None

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
