HD LED Halos for 2018-2023 Ford Mustang (pair)

$94.95
In stock for immediate shipment.

Features

  • Proprietary durable phosphor coating, for uniform solid appearance
  • Multi-function PWM drivers, fully waterproof, featuring low power, high power, and turn signal modes
  • Extremely bright, high-density LEDs that are visible even in direct sunlight
  • Integrated mounting tabs for easy installation
  • Assembled in USA

Overview

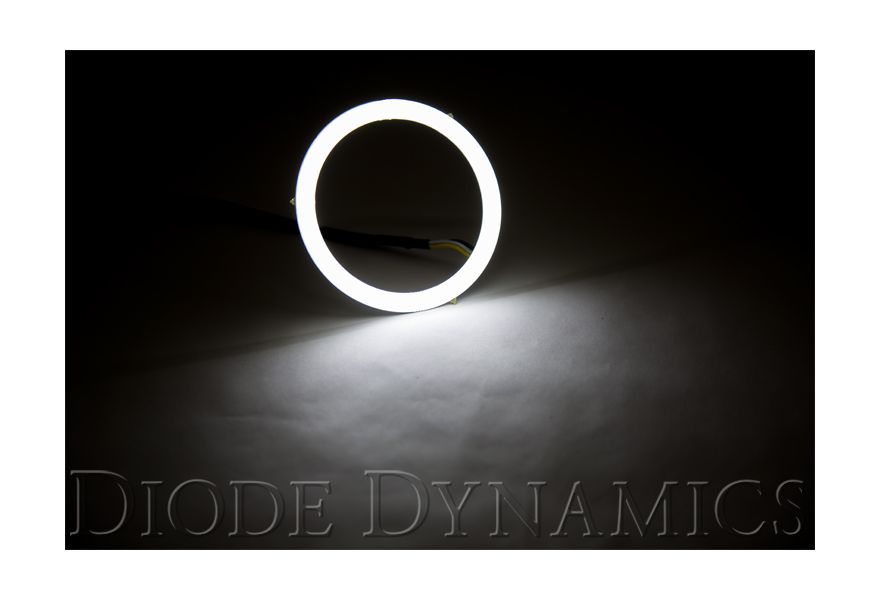

HDHalo Technology. These HD LED halo rings have been designed from the ground-up to be absolutely the brightest, most reliable halos physically possible. Each halo is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

Sizing: All sizes are listed by outside diameter, in millimeters. Width is 8mm, so inside diameter is 16mm less than outside diameter. Total height is 4.5mm.

Wiring: All wires have a durable braided wire covering. The LED has a 20-inch wire with female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like.

PWM Control: Aside from the high brightness and perfectly uniform output, one great feature of these halos is the integrated multifunction PWM dimming control. The drivers have four wires, to be connected to any 12V signals as follows:

White: White Low Power, 50% brightness
Red: White High Power, 100% brightness
Yellow: Amber Signal, double brightness, flashing (dims if powered more than two seconds)
Black: Ground

All input wires activate the halos, at different brightness levels. All switchback halos ship with "low" priority drivers. This means that if both "low" and "high" power inputs are powered, the LED will light up in white, with low power level. This is convenient for connecting the red wire to a parking light or DRL signal, for use during the day as a high-power DRL. Then, if the white wire is connected to the headlamp power, they will dim down at night. If the yellow wire is powered at any time, the halo will light up in amber color, intended for signaling. If you'd like to use amber all the time, no problem! It will dim automatically if powered for more than two seconds, to keep it safe.

This entire setup allows you to connect the halo directly as a multifunction lamp, without any external controllers needed. Of course, this is completely optional. You can just use one or two of the input wires if you'd like.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • Two (2) LED halo rings
  • Two (2) waterproof drivers
  • Two (2) input wire pigtails
  • Eight (8) T-tap connectors
  • Installation guide
Quantity: Two (2)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Make: Ford
Model: Mustang
Years: 2018, 2019, 2020, 2021, 2022, 2023
Electrical Compatibility: No known electrical issues
DRL Function: Operates at full brightness for DRL

Specifications

Datasheet(s) (click to download): 70mm Amber, 70mm Blue, 70mm Red, 70mm White
Operating Voltage: 9-16V
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): JST Inline Connectors, T-Tap Inputs
Driver Features: External, Waterproof, Linear Regulated
Driver Dimensions: 2.5" x 1.38" x 0.88"
Make: Ford
Model: Mustang
Years: 2018, 2019, 2020, 2021, 2022, 2023
Electrical Compatibility: No known electrical issues
DRL Function: Operates at full brightness for DRL

What's Included

100% Satisfaction Guarantee

Installation

The halos must be custom-mounted in position using adhesive or beading wire using the integrated mounting tabs. If you wish, mounting tabs may be removed with a pair of clippers or basic sanding.

Modification: Open and Reseal Lamp

Installation Guide: Click to download

Wire Colors: To make these boards work with factory lighting functions on the Mustang, we recommend tapping to the following wires.

Left side (driver side in US):

  • DRL: White/Blue, Headlight Connector
  • Parking (USDM): Purple/White, Headlight Connector
  • Parking (EU/AU): Blue/Green, Fog/Turn Lamp Connector
  • Turn Signal: Blue/Green, Fog/Turn Lamp Connector
  • Ground: Black/Green, Headlight Connector

Right side (passenger side in US):

  • DRL: Purple/White, Headlight Connector
  • Parking (USDM): Purple/White, Headlight Connector
  • Parking (EU/AU): Brown/Yellow, Fog/Turn Lamp Connector
  • Turn Signal: Yellow/Grey, Fog/Turn Lamp Connector
  • Ground: Black/Grey, Headlight Connector

Warranty

3 Year Replacement Limited Warranty

All Diode Dynamics products come with a 3 Year Worry-Free Warranty.

If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.
