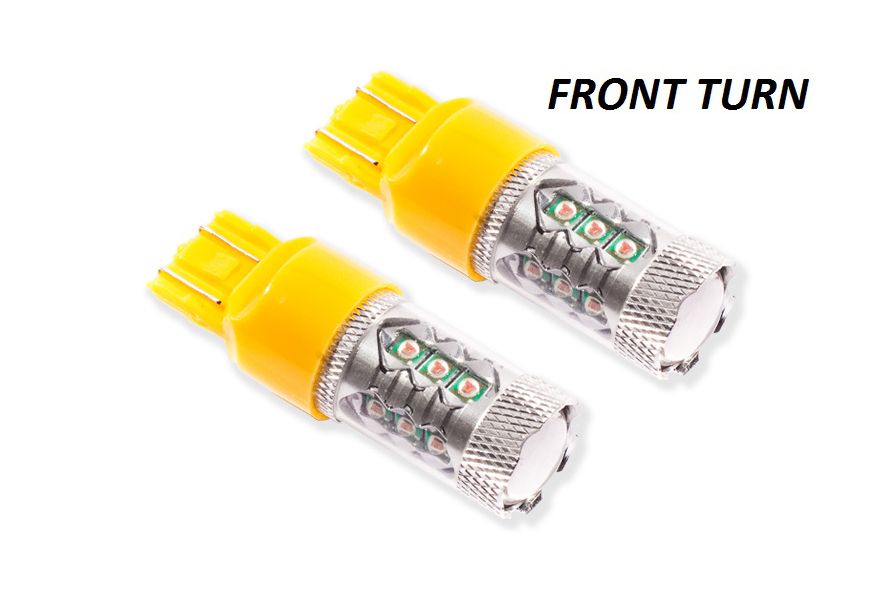

Front Turn Signal LEDs for 2015-2018 GMC Canyon (pair)

$39.95
In stock for immediate shipment.

Features

  • Modern LED appearance with instant on and off
  • Direct replacement for GMC Canyon front turn bulbs
  • Plug and play, no modification with factory 7443 bulb size
  • Multiple brightness levels available

Overview

LED Indicators. The factory incandescent turn signals on the GMC Canyon illuminate in a slow glow, taking a moment to turn off and on. With replacement LED bulbs, you can immediately update your vehicle with the instant on-off blinking of modern LEDs. This instant activation adds a modern and distinct look to the Canyon.

Dual Brightness. The Canyon uses a 7443 dual-filament bulb. They light up with low power as parking lights, then they get brighter when the turn signal or hazards are activated. The brightness ratio of your factory bulbs is traditionally 15:100, or 15% lumen output for the dim function. Diode Dynamics bulbs are designed to match this, so there is enough distinction between "low" and "high" brightness levels. As with all Diode Dynamics LED bulbs, these turn signal bulbs are rated with accurate, measured lumen figures, not calculations or guesses.

Reduced Load. When it comes to LED upgrades, you'd think the lower power draw would be a great feature! However, the Canyon looks for a specific power draw from the turn signals. LEDs will make the vehicle think a bulb has gone out, due to lower power draw. This causes a "hyperblink," or fast-blinking turn signal, which can be corrected with LED Resistors or an LED Flasher.

The most basic, tried-and-true method to correct hyperblinking is to add resistors. These can be used on any vehicle, because a 6-ohm resistor uses about the same power as a standard turn signal bulb. One resistor is needed to replace each turn signal bulb.

You may have also heard of flasher relays, which is the actual module that determines flash speed. On some vehicles, it can be replaced with one that is designed for LED power levels. However, on many newer vehicles these modules cannot be replaced. If it's possible to replace the flasher on the Canyon, you'll see one listed above. Only one flasher is needed per vehicle, for both front and rear LED turn signal conversions.

Reliability. Diode Dynamics LEDs are built with constant-current inductive circuitry, along with transient suppression. They are tested by our engineering team with a device that replicates years of voltage spikes, like the ones generated each time the alternator starts and stops on your Canyon. This is what kills most LED bulbs over time, but just like factory components, Diode Dynamics LEDs are designed with built-in circuit protection. While more expensive than simple bulbs, this allows Diode Dynamics LEDs to last for years, with no flickering or failure.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a GMC or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

Quantity: Two (2)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Bulb Size: 7443
Application: Front Turn Signal
Make: GMC
Model: Canyon
Years: 2015, 2016, 2017, 2018
Electrical Compatibility: PWM/CANBUS System. Requires resistors
Flasher Setup: BCM Controlled (resistor only)

Specifications

Operating Voltage: 9-16V
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): OEM-Size Plug and Play
Bulb Size: 7443
Application: Front Turn Signal
Make: GMC
Model: Canyon
Years: 2015, 2016, 2017, 2018
Electrical Compatibility: PWM/CANBUS System. Requires resistors
Flasher Setup: BCM Controlled (resistor only)

What's Included

100% Satisfaction Guarantee

Installation

Installation Time: 20-30 minutes

Tools Needed: Basic Toolset

Modification: None

Installation Guide: Click to download

Wire Colors: If you're installing resistors to prevent hyperblink with your replacement turn signal bulbs, you will need to tap the following wire colors on the turn signal socket of your Canyon.

Left side (driver side in US):

  • Power: Yellow
  • Ground: Black

Right side (passenger side in US):

  • Power: Yellow
  • Ground: Black

Warranty

3 Year Replacement Limited Warranty

All Diode Dynamics products come with a 3 Year Worry-Free Warranty.

If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.
