Elite Series Add-On Fog Lamp Kit for 2022-2024 Ford Maverick

$299.95
In stock for immediate shipment.

Features

  • Adds SAE-compliant fog lights to the 2022+ Ford Maverick.
  • OEM appearance with included textured bezel.
  • Custom harness allows for factory-like operation.
  • Sharp, asymmetric beam pattern achieves 100-degree total spread.
  • Distinctive integrated amber backlight.
  • Engineered and assembled in USA.

Overview

While the Ford Maverick doesn’t come with a factory fog light option, there is still a need for light directly in front of the vehicle to increase your visibility in foggy, dusty, snowy, or rainy conditions. Headlights simply weren’t designed to provide this kind of visibility, so that’s where we come in. Introducing our new add-on Elite Series Fog Lamp Kit for the 2022-2024 Ford Maverick! This kit allows you to mount two SAE-compliant fog lamps in the factory bumper, while maintaining an OEM appearance thanks to the custom-designed bezel.

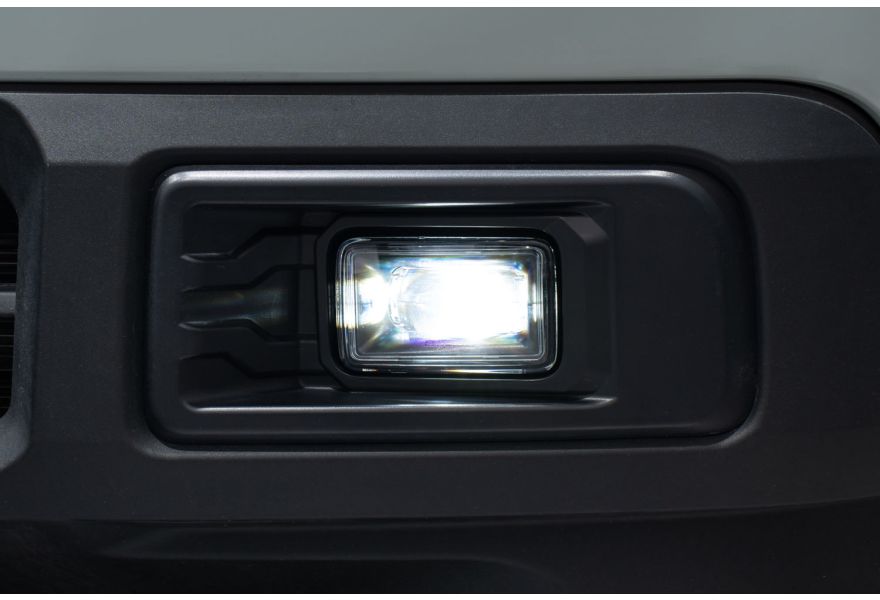

OEM+ Appearance. Our team of in-house engineers designed the bezel included in this fog light kit to match the factory bumper, giving you a seamless appearance between plastics. While this kit does require cutting the bumper, it’s simple to do and is absolutely worth it.

Factory-like Operation. Unlike other basic harnesses on the market, the Add-On Fog Harness included in this kit allows the fog lights to operate automatically, just like you'd expect from the factory. By using an activation and deactivation wire, along with a toggle switch, the harness will turn your fog lights on automatically any time the headlights are turned on, and the switch is in the on position. This is much more convenient than manually flipping a switch on every time you want to use them!

Output that Outperforms. The Elite Series Fog Lamp is built around a highly-engineered single-piece PMMA lens. This optic was carefully designed using advanced optical simulation software to produce an asymmetric light pattern that is wider than any other aftermarket fog lamp on the market, with a 100-degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow. The Elite Series Fog Lamps in this kit are available in a cool white or selective yellow output color.

The white is a 6000K color temperature, which is a true cool white output. This will perfectly match other LEDs on your vehicle, such as DRLs or running lights. The white option also offers a premium BMW-style color band at the very top of the beam pattern.

The selective yellow option is 3000K in color temperature, which is great for high contrast in inclement weather, or in providing a distinctive look on the road. The yellow lamp consists of a yellow multi-die LED emitter paired with a yellow-tinted lens, to provide unmatched output and optical efficiency, even with the intense yellow output.

Backlight Functionality. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs, intended to match other position, sidemarker, or corner lights on your vehicle. Check local laws and regulations for acceptable use.

Bolt-On Fitment. The brackets included in this kit bolt directly to factory mounting points behind the bumper. With built-in adjustment, the lamps can be aimed after installation. Our add-on foglight wiring harness is included to connect the fog lights to your factory lighting functions. Click here to learn how to aim your Elite Series Foglamps: How to Aim Your Fog Lights.

Assembled with Quality - in the USA. Elite Series Fog Lamps are assembled in the USA using OEM-grade materials, including a precision aluminum casting, UV-coated outer lens, copper-core circuit board, and multi-die automotive emitters. After being assembled by Diode Dynamics in St. Louis, Missouri, they are robotically sealed with urethane epoxy for long-lasting protection against moisture, and packaged in form-fit foam for safe transportation. No expense has been spared, from materials to assembly, right here in America.

Proven Reliability - Backed for 8 Years. Like our popular Stage Series lineup, Elite Series LED lamps have been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components on your vehicle. With integrated moisture-proof vents, the lamps can “breath” with changes in temperature, maintaining a strong seal over time. And with built-in circuit protection for voltage spikes and reverse polarity, these lights will keep working for years. They are backed by an industry-leading 8-year limited warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • Two (2) Elite Series Type F2 fog lights
  • Two (2) Vehicle specific fog light bezels
  • Two (2) Support rings
  • One (1) Add-on fog light wiring harness
  • One (1) Speaker relocation bracket
  • Eight (8) Zip ties
  • Four (4) T-taps
  • Mounting hardware
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: This kit is not compatible with the Tremor or FX4 trim levels. It is only compatible with trucks without tow hooks.

Application: Fog Light
Make: Ford
Model: Maverick
Years: 2022, 2023, 2024

Specifications

Measured Lumens: White: 1650 lm, Yellow: 1900 lm
Intensity (cd): White: 11,300 cd, Yellow: 11,000 cd
Color Temp (CCT): 3000K, 6000K
Beam Angle: Fog, 100°x7°
Power (watts): Main Beam White: 16, Main Beam Yellow: 21, Backlight: 2.0
Operating Voltage: 9-16V
Current (amps @ 13.2V): Main Beam White: 1.2, Main Beam Yellow: 1.6, Backlight: 0.15
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: DongFeng DF3E
Connector(s): Deutsch DT Input, 9006
Driver Features: Internal, Constant Current
Materials: Copper PCB, UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
Intrusion Ratings: IP69K Waterproof, High Pressure
Unit Weight (lb): 1.7
Product Weight (lb): 5
Shipped Weight (lb): 7.7
Application: Fog Light
Make: Ford
Model: Maverick
Years: 2022, 2023, 2024

What's Included

100% Satisfaction Guarantee

Installation

Installation Time: 2-3 hours

Tools Needed: Basic Toolset

Modification: Major Modification

Installation Guide: Click to download

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
