2017-2020 Ford Raptor SAE/DOT LED Lightbar Kit

$119.95
In stock for immediate shipment.

Ford Raptor LED Fog Brackets

  • Direct fitment on 2017+ Ford Raptor.
  • Street-legal output as Driving lights or Fog lights (Please check your local laws and regulations for aiming, installation, and applicability).
  • Highly durable powdercoated steel construction.
  • Utilizes existing mounting points and hardware for a simple installation.
  • CAD-designed for perfect fitment.

Overview

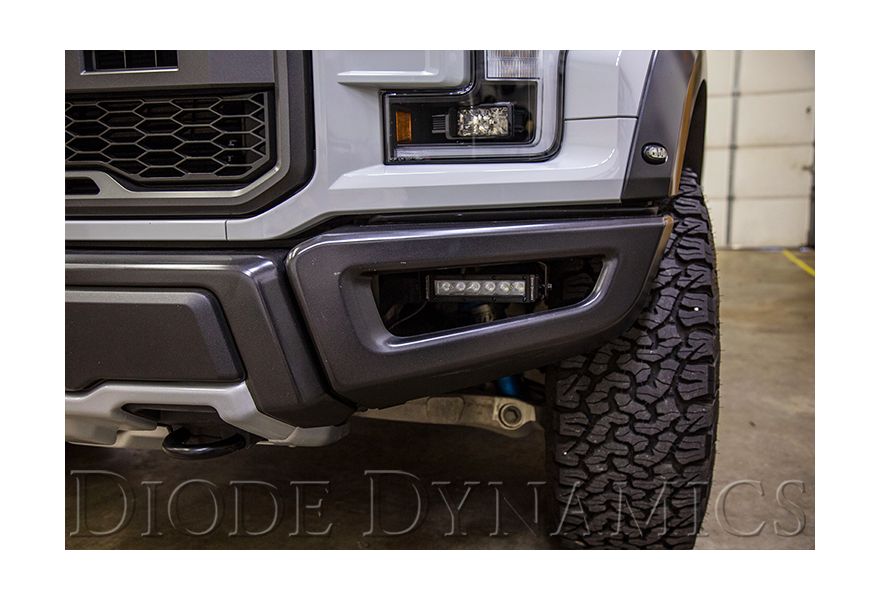

Perfect Fitment. The LED Fog Light Bar Bracket Kit for the 2017+ Ford Raptor from Diode Dynamics allows you to mount auxiliary lighting in the factory bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Choose Your Look. This kit allows you to mount either a pair of SS6 Stage Series 6" Light Bars, a pair of SS12 Stage Series 12" Light Bars, or up to three generic work lights or pods in the bumper openings.

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

light bar beam patterns

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
Brackets Only:
  • Two (2) Application-specific brackets for installation on 2017-2019 Ford Raptor
  • Installation Guide
6" Light Bar Kit:
  • Two (2) Application-specific brackets for installation on 2017-2019 Ford Raptor
  • Two (2) U-brackets
  • Two (2) SS6 Stage Series 6" Light Bars
  • One (1) Light Duty Dual-Output Harness
  • Installation Guide
12" Light Bar Kit:
  • Two (2) Application-specific brackets for installation on 2017-2019 Ford Raptor
  • Two (2) U-brackets
  • Two (2) SS12 Stage Series 12" Light Bars
  • One (1) Light Duty Dual-Output Harness, or One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness and One (1) Aux Switch Adapter Wire
  • Installation Guide
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Application: Fog Light
Make: Ford
Model: Raptor
Years: 2017, 2018, 2019, 2020
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
SS6 White Driving 55,000 cd 550 lux 1,400 lm 2,280 lm 6000K White
SS6 White Wide 13,000 cd 130 lux 1,400 lm 2,280 lm 6000K White
SS12 White Driving 110,000 cd 1,110 lux 2,800 lm 4,560 lm 6000K White
SS12 White Wide 26,000 cd 260 lux 2,800 lm 4,560 lm 6000K White

Color Temp (CCT): 6000K
Beam Angle: Wide, 100°x8°, Driving, 20°x8°
Power (watts): 26.6
Operating Voltage: 9-24V
Current (amps @ 14V): 1.9
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Product Dimensions (in): 7x3x1.63 If you would like CAD for your project, please contact us.
