2016-2018 GMC Sierra 1500 LED Halos

$219.95
In stock, but not many left.

2016-2018 GMC Sierra LED Halos

  • Computer-designed LED Halos for the 2016-2018 Sierra 1500
  • A huge increase in brightness, even in direct sunlight
  • More uniform output, upgrade from segmented factory optics
  • Designed and assembled in the U.S.A

Overview

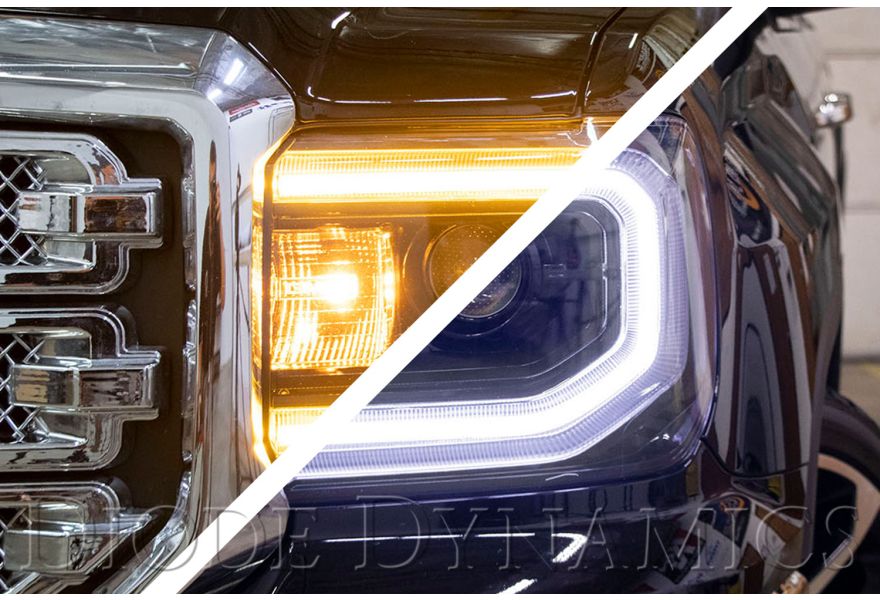

Time for an upgrade! From the factory, the Sierra comes with a white C-shaped DRL that from certain angles can look segmented and distorted. Diode Dynamics is excited to release our HD LED Halos for the 2016-2018 GMC Sierra that provides a much brighter, more uniform appearance compared to the factory optics. These computer-designed LED Halos are circuit boards that align perfectly behind the factory diffusing reflector. Available in switchback and functions as an additional front turn signal for a custom, yet functional look!

High output, clean appearance. The application-specific LED halos illuminate in place of the factory LED boards, with a much higher intensity. With our proprietary high-density "HDLED" technology, these modules are populated with over 700 LED chips, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When it's off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

Constant-current power. To power the halos efficiently, your order includes two custom-designed drivers, which feature transient voltage suppression, reverse protection, and a switching driver for extremely high reliability over time. And here's what really makes this product shine over the competition: with an embedded microcontroller, the drivers utilize multi-stage PWM dimming, to allow for half-brightness, for use at night (parking lights), as well as full-power, for use as DRL during the day. Finally, the amber is run at even higher power, making the turn signal easily visible in broad daylight!

Wire it up. Wiring instructions are included with your order. You will need to use the included T-tap connectors to connect the drivers to ground, parking signal, DRL, and turn signal on each side. Professional installation is recommended for this product, as the headlights must be opened.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

Installation Info

Headlamps must be opened for installation (professional installation recommended)

What's Included

In the Box:
  • Two (2) application-specific LED Halos
  • Two (2) waterproof drivers
  • Two (2) input wire pigtails with T-taps
  • Installation guide
Quantity: Pair (Left and Right Side)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: Not compatible with 2016-2018 GMC Sierra 2500 or 3500.

Application: DRL
Make: GMC
Model: Sierra 1500
Years: 2016, 2017, 2018
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

Measured Lumens: 670
Color Temp (CCT): 2000K, 6000K
Power (watts): 11.65
Operating Voltage: 9-16V
Current (amps @ 13.2V): .910
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Custom-Manufactured
Connector(s): JST Inline Connectors, T-Tap Inputs
Driver Features: External, Waterproof, Constant Current
Materials: FR4 PCB
Cooling: Passive, no heatsink
Product Dimensions (in): 14.25x8.75x2.25
Application: DRL
Make: GMC
Model: Sierra 1500
Years: 2016, 2017, 2018
Electrical Compatibility: No electrical issues (tested and confirmed)

What's Included

100% Satisfaction Guarantee

Installation

NOTE: On certain Denali trim levels, the DRL is pin 8 and the Parking light is pin 6.

Installation tools: Phillips screwdriver and double-sided adhesive or epoxy.

Installation Time: 1-2 hours

Modification: Open and Reseal Lamp

Installation Guide: Click to download

Wire Colors: To make these boards work with factory lighting functions on the Sierra 1500, we recommend tapping to the following wires.

Left side (driver side in US):

  • Low Power (50% Brightness): Blue/Gray
  • High Power (100% Brightness): Violet/Gray
  • Turn Signal: Blue/White
  • Ground: Black

Right side (passenger side in US):

  • Low Power (50% Brightness): Blue/Brown
  • High Power (100% Brightness): Violet/Gray
  • Turn Signal: Green/Violet
  • Ground: Black

Warranty

3 Year Replacement Limited Warranty

All Diode Dynamics products come with a 3 Year Worry-Free Warranty.

If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.
