2014-2021 Toyota Tundra Stealth LED Light Bar Bracket Kit

$59.95
In stock for immediate shipment.

2014+ Toyota Tundra Stealth LED Light Bar Kit

  • Direct fitment on 2014+ Toyota Tundra.
  • CAD-designed for perfect fitment and OEM-like appearance.
  • Highly durable powdercoated steel construction.
  • Utilizes existing mounting points and hardware for a simple installation.
  • Plug-and-play wiring harness included to power light bars.

Overview

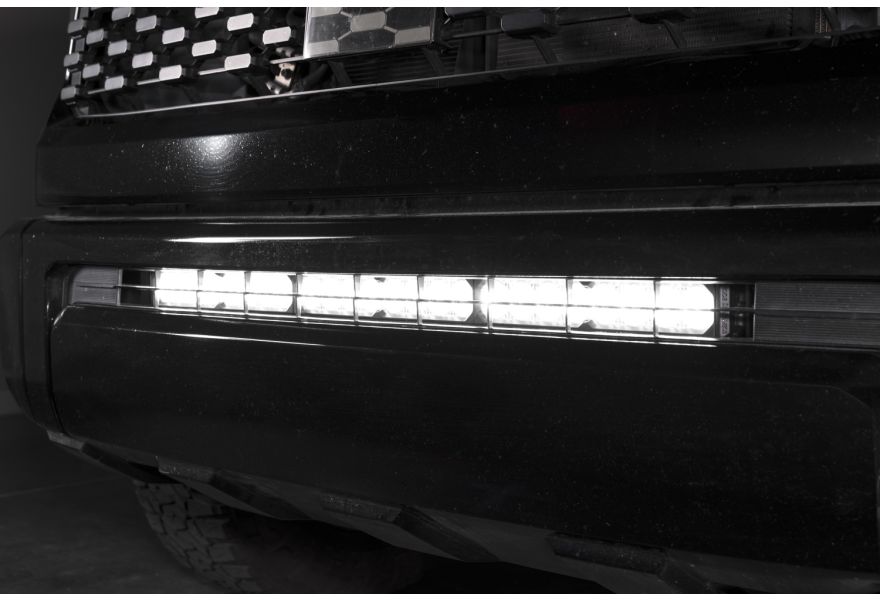

Perfect Fitment. The Stealth LED Light Bar Kit for the 2014+ Toyota Tundra from Diode Dynamics allows you to mount either a SS30 Stage Series 30" Light Bar or a SS42 Stage Series 42" Light Bar in the factory lower grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Choose your look. This kit is available in two different sizes to achieve the look you're after! The 30" kit retains the plastic factory grille for an OEM-like appearance, while the 42" kit fills the entire opening, providing maximum light output.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • Two (2) Application-specific heavy-duty steel brackets for installation on 2014+ Toyota Tundra
  • One (1) SS30 30" or SS42 42" Stage Series Light Bar
  • One (1) heavy-duty single output offroad wiring harness
  • One (1) aux switch adapter wire
  • All necessary hardware
  • Installation Guide
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: This kit may cause interference with the block heater plug.

Make: Toyota
Model: Tundra
Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
SS30 White Driving 275,000 cd 2,750 lux 7,000 lm 11,400 lm 6000K White
SS30 White Combo 217,000 cd 1,690 lux 7,000 lm 11,400 lm 6000K White
SS30 White Flood 10,000 cd 100 lux 7,000 lm 11,400 lm 6000K White
SS30 Amber Driving 165,000 cd 1,650 lux 4,000 lm 5,700 lm 2000K Amber
SS30 Amber Combo 113,800 cd 1,014 lux 4,000 lm 5,700 lm 2000K Amber
SS30 Amber Flood 6,000 cd 60 lux 4,000 lm 5,700 lm 2000K Amber
SS42 White Driving 385,000 cd 3,850 lux 9,800 lm 15,960 lm 6000K White
SS42 White Combo 301,000 cd 2,790 lux 9,800 lm 15,960 lm 6000K White
SS42 White Flood 14,000 cd 140 lux 9,800 lm 15,960 lm 6000K White
SS42 Amber Driving 231,000 cd 2,310 lux 5,600 lm 7,980 lm 2000K Amber
SS42 Amber Combo 179,800 cd 1,674 lux 5,600 lm 7,980 lm 2000K Amber
SS42 Amber Flood 8,400 cd 84 lux 5,600 lm 7,980 lm 2000K Amber

Color Temp (CCT): 2000K, 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood), Flood, 80°x50°
Operating Voltage: 9-24V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Product Dimensions (in): 30in: 11x5x3 (Brackets Only), 42in: 11x7x3.5 (Brackets Only)
Make: Toyota
Model: Tundra
Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Electrical Compatibility: No electrical issues (tested and confirmed)

What's Included

100% Satisfaction Guarantee

Installation

Uses existing mounting points behind the grille, no modification needed.

Installation Time: 30-60 minutes

Tools Needed: Basic Toolset

Modification: None

Installation Guide: Click to download

Wiring Instructions: Click here

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
