2014-2021 Toyota Tundra SAE/DOT LED Lightbar Kit

$479.95
In stock for immediate shipment.

2014+ Toyota Tundra LED Driving Kit

  • Direct fitment on 2014+ Toyota Tundra.
  • Street-legal output as Driving lights (Please check your local laws and regulations for aiming, installation, and applicability).
  • Plug-and-play wiring harness included to control through your factory high beam switch.
  • Highly durable powdercoated steel construction.
  • Utilizes existing mounting points and hardware for a simple installation.
  • CAD-designed for perfect fitment.

Overview

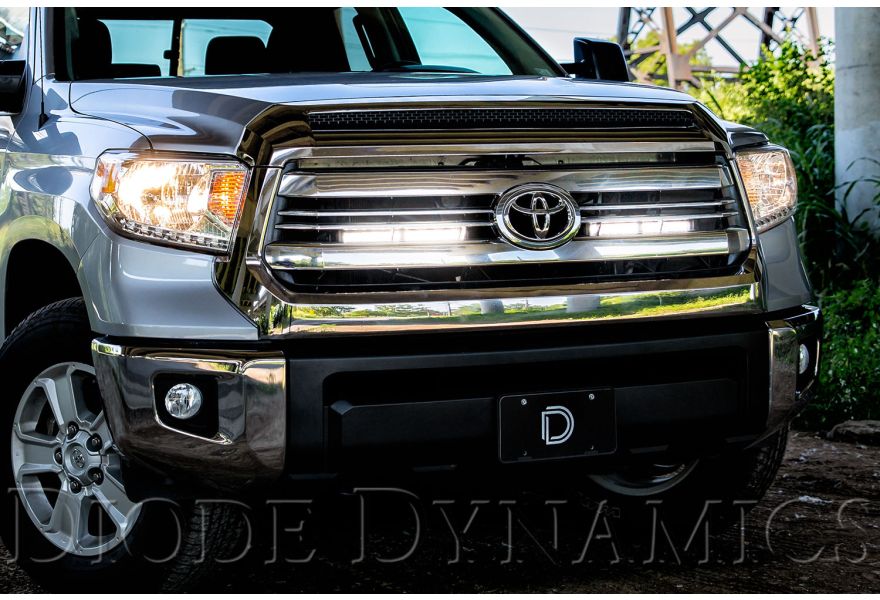

Perfect Fitment. The LED Driving Light Kit for the 2014+ Toyota Tundra from Diode Dynamics allows you to mount a pair of SS12 Stage Series 12" Light Bars behind the factory grille. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming, installation, and applicability). With the included plug-and-play high-beam adapter, you can control the kit through your factory high-beam switch.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

light bar beam patterns

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

Installation Info

  • Uses existing mounting points behind grille, no mounting modification needed
  • Click here for additional wiring instruction.

What's Included

In the Box:
  • Three (3) Application-specific heavy-duty steel brackets for installation on 2014+ Toyota Tundra
  • Two (2) SS12 Stage Series 12" Light Bars
  • One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
  • One (1) Aux Switch Adapter Wire
  • One (1) H4 High-beam adapter
  • All Necessary Hardware
  • Installation Guide
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: This product is intended for best application on the SR and SR5 model grille, as pictured. This product is compatible with the Sport models; however, some of the light will be blocked by the grille. This product is also compatible with Platinum models. The H4 high beam adapter included in this kit will not be compatible with LED headlights.

Application: High Beam
Make: Toyota
Model: Tundra
Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
SS6 White Driving 55,000 cd 550 lux 1,400 lm 2,280 lm 6000K White
SS6 White Wide 13,000 cd 130 lux 1,400 lm 2,280 lm 6000K White
SS12 White Driving 110,000 cd 1,110 lux 2,800 lm 4,560 lm 6000K White
SS12 White Wide 26,000 cd 260 lux 2,800 lm 4,560 lm 6000K White

Color Temp (CCT): 2000K, 6000K
Beam Angle: Wide, 100°x8°, Driving, 20°x8°
Power (watts): 58.8
Operating Voltage: 9-24V
Current (amps @ 14V): 4.2
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Polycarbonate Lens, Aluminum Heatsink, Powdercoated Steel
Cooling: Passive, heatsink
Compliance Ratings: SAE J581 Driving/Auxiliary High Beam Pattern, SAE J583 Foglamp Beam Pattern
Product Dimensions (in): 13x3x1.63 If you would like CAD for your project, please contact us.
Application: High Beam
Make: Toyota
Model: Tundra
Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Electrical Compatibility: No electrical issues (tested and confirmed)

What's Included

100% Satisfaction Guarantee

Installation

Installation Time: 30-60 minutes

Tools Needed: Basic Toolset

Modification: None

Installation Guide: Click to download

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
