2013-2018 Dodge Ram Sport/Express SAE/DOT LED Lightbar Kit

$379.95
In stock for immediate shipment.

2013-2018 Ram Sport/Express LED Driving Kit

  • Direct fitment on 2013-2018 Dodge Ram Sport/Express.
  • Street-legal output as Driving or Fog lights (Please check your local laws and regulations for aiming, installation, and applicability).
  • Dual output wiring harness included.
  • Highly durable powdercoated steel construction.
  • Utilizes existing mounting points and hardware for a simple installation.
  • CAD-designed for perfect fitment.

Overview

Perfect Fitment. The LED Driving Light Kit for the 2013-2018 Dodge Ram with Sport/Express bumper from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in the bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

light bar beam patterns

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

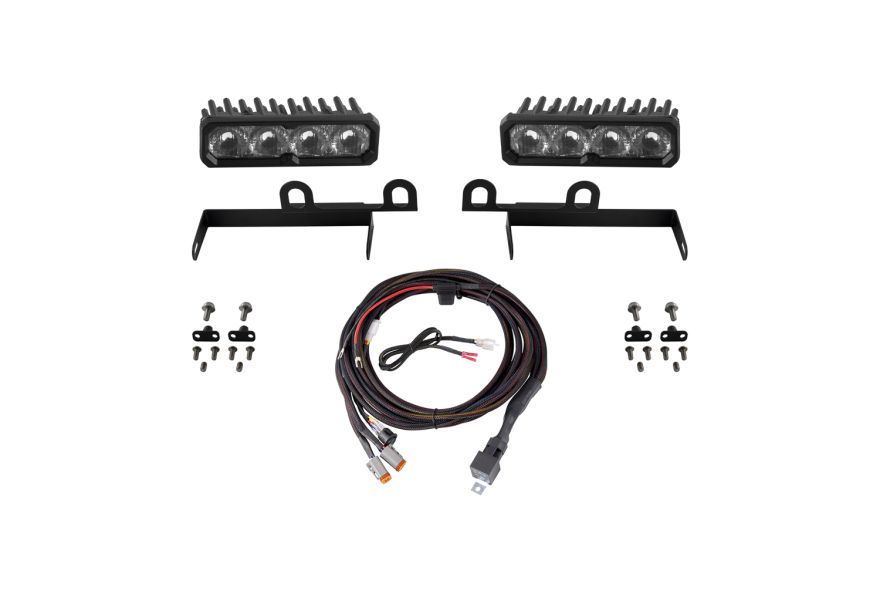

What's Included

In the Box:
  • Two (2) Application-specific heavy-duty steel brackets for installation on 2013-2018 Ram Sport/Express
  • Two (2) SS6 Stage Series 6" Light Bars
  • One (1) Dual Output Harness with toggle switch
  • All Necessary Hardware
  • Installation Guide
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: This kit was designed for the 2013-2019 Ram with the Sport/Express bumper. If you have the Standard bumper, CLICK HERE.

Make: Ram
Model: 1500/2500/3500
Years: 2013, 2014, 2015, 2016, 2017, 2018
Electrical Compatibility: No electrical issues (tested and confirmed)

Specifications

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
SS6 White Driving 55,000 cd 550 lux 1,400 lm 2,280 lm 6000K White
SS6 White Wide 13,000 cd 130 lux 1,400 lm 2,280 lm 6000K White



Measured Lumens: 2280
Intensity (cd): 47,000
Color Temp (CCT): 2000K, 6000K
Beam Angle: Wide, 100°x8°, Driving, 20°x8°
Power (watts): 26.6
Operating Voltage: 9-24V
Current (amps @ 14V): 1.9
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Product Dimensions (in): 7x3x1.63 If you would like CAD for your project, please contact us.
Make: Ram
Model: 1500/2500/3500
Years: 2013, 2014, 2015, 2016, 2017, 2018
Electrical Compatibility: No electrical issues (tested and confirmed)

What's Included

100% Satisfaction Guarantee

Installation

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: Minor Modification

Installation Guide: Click to download

Wiring Instructions: Click here

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
